Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0-1000 Ppm CO |
|---|---|---|---|
| Maximum Overload: | 2000 Ppm CO | Sensitivity*: | 0.07 ± 0.015 μA/ppm |
| Response Time (T90)*: | < 20 Seconds | Baseline Offset (clean Air)*: | < ±2 Ppm Equivalent |
| Zero Shift (-40°C To +50°C)*: | <+12 Ppm Equivalent | Repeatability: | < ±3% |
| Highlight: | Industry Leading Reliability CO Gas Sensor,2112B2006 CO Gas Sensor,4CFC CO Gas Sensor |
||

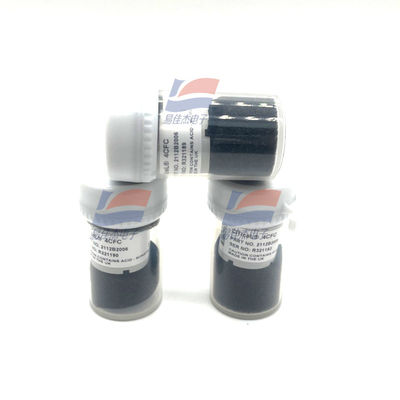

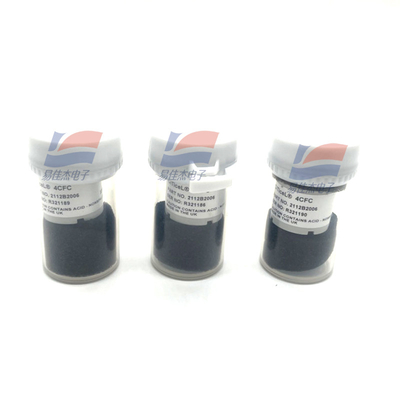

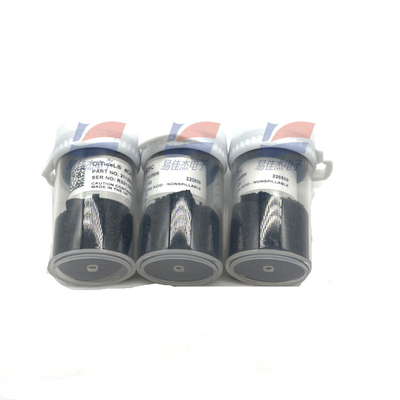

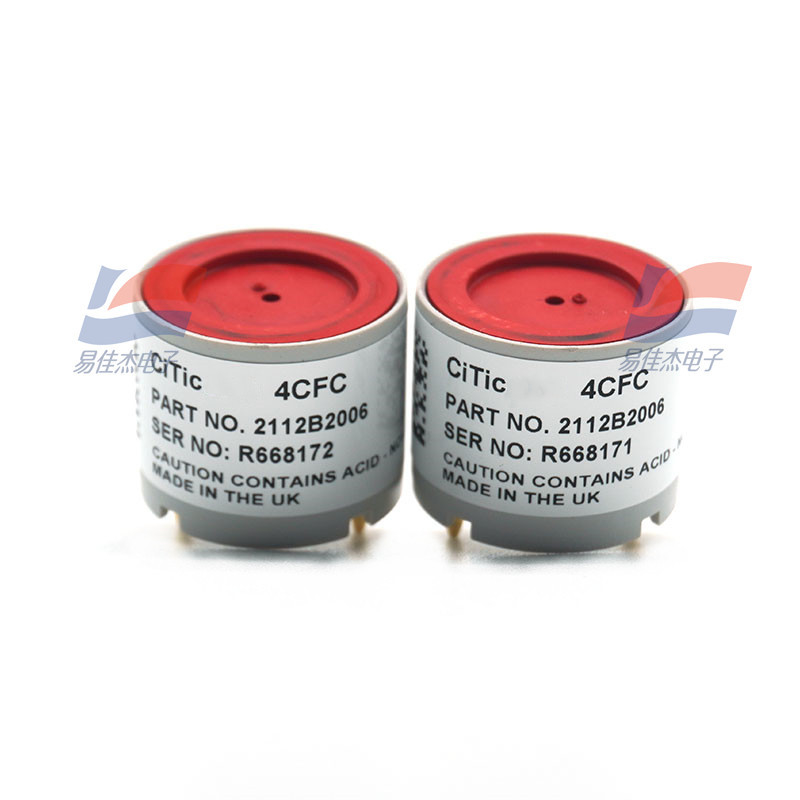

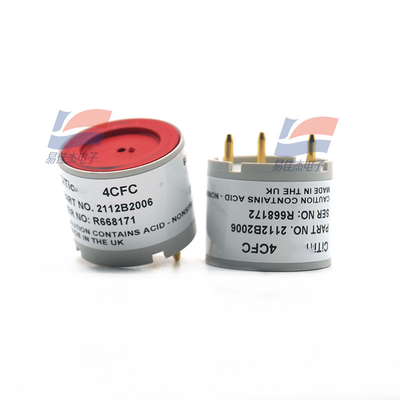

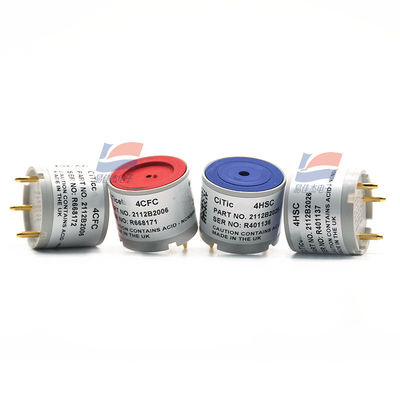

4CFC Carbon Monoxide (CO) Gas Sensor Part Number: 2112B2006 Industry leading reliability
Application scenario:
Industrial production plants, coal mine shafts, environmental pollution emissions, industrial waste gas testing instruments, fuel plant warehouse storage, chemical factory production environment monitoring
* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry.
Performance characteristics outline the performance of sensors supplied within the first 3 months.
Output signal can drift below the lower limit over time.
| Housing Material | Noryl 110 |
| Weight | 5 g (nominal) |
| Maximum at 2000 ppm | 0.2 mA |
| Maximum o/c Voltage | 1.3 V |
| Maximum s/c Current | <1.0 A |
| Long Term Output Drift | < 5% per annum |
