S1226-44BQ Si Photodiode For UV to Visible Precision Photometry Suppressed near IR Sensitivity

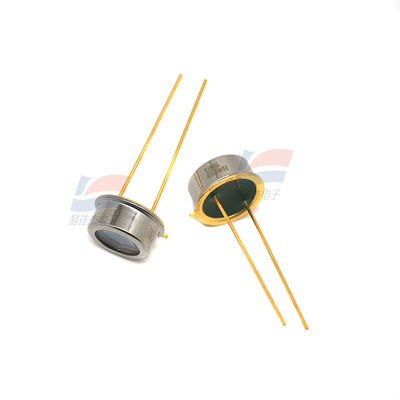

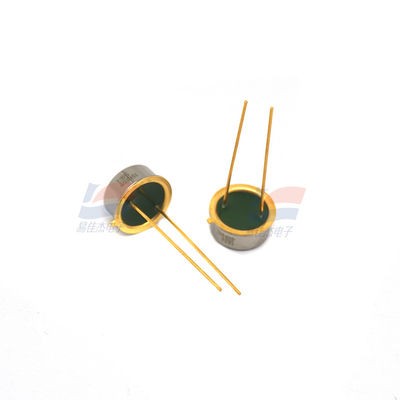

Large Image : S1226-44BQ Si Photodiode For UV to Visible Precision Photometry Suppressed near IR Sensitivity

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S1226-44BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

S1226-44BQ Si Photodiode For UV to Visible Precision Photometry Suppressed near IR Sensitivity

Description

Photosensitive Area:

3.6 × 3.6 Mm

Package:

Metal

Package Category:

TO-5

Cooling:

Non-cooled

Highlight:

UV-Visible IR Sensitive Photodiode Sensor

S1226-44BQ Photodiode Sensor

Various Environments Photodiode Sensor

S1226-44BQ Si Photodiode For UV to Visible Precision Photometry Suppressed near IR Sensitivity

Features
Suppressed near IR sensitivity
High sensitivity in Uv region (quartz glass type)
Low dark current
High reliability

Applications
Analytical equipment
Optical measurement equipment, etc.

Specification

Reverse voltage (max.)	5 V
Spectral response range	190 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.36 A/W
Dark current (max.)	10 pA
Rise time (typ.)	1 μs
Terminal capacitance (typ.)	500 pF
Noise equivalent power (typ.)	3.6×10-15 W/Hz1/2

S1226-44BQ Si Photodiode For UV to Visible Precision Photometry Suppressed near IR Sensitivity 0
