Product Details:
|
| Product Model: | Product Model | Measuring Range: | 10 Ppm |
|---|---|---|---|
| Maximum Load: | 20ppm | Sensitivity: | 0.70 ± 0.15 UA/ppm |
| Resolution: | 0.1ppm | Operating Temperature: | -20℃ To 50℃ |
| Highlight: | Methyl mercaptan Classic Line Sensor,0-10 ppm Classic Line Sensor,4-CH3SH Classic Line Sensor |
||

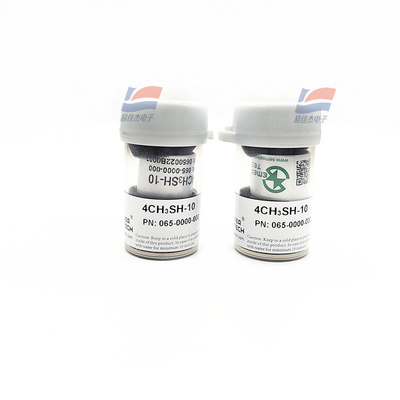

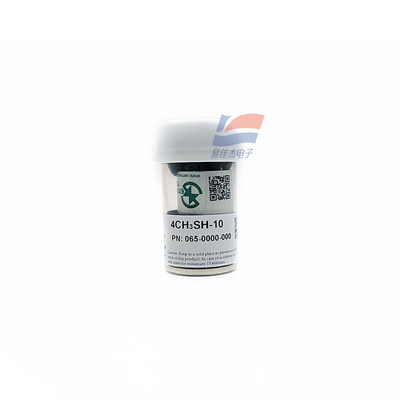

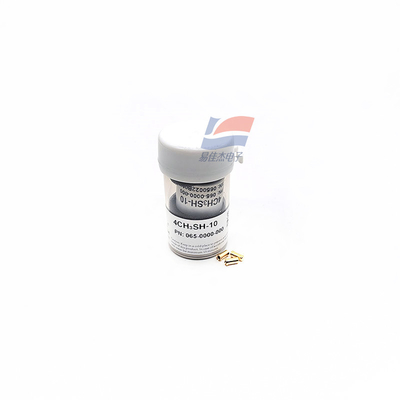

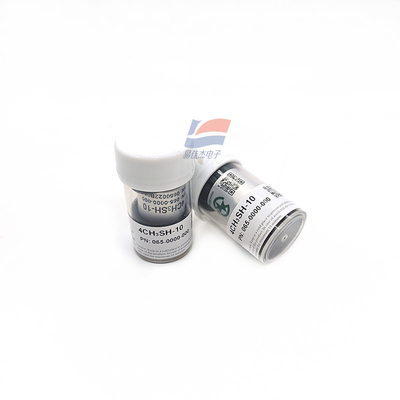

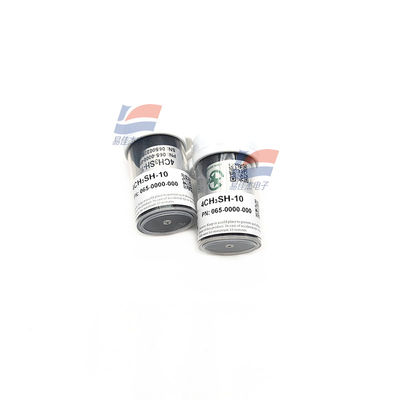

4-CH3SH Classic Line Sensor Methyl mercaptan sensor 0-10 ppm CLE-3611-400
Instructions for use:
1. All the above performance specifications are measured at ambient conditions: temperature 20 ℃, relative humidity 50%RH, one atmospheric pressure (100 kPa or ambient pressure).
2. Target gas is recommended for calibration. In the case of calibration with cross-sensitive gases, we do not guarantee the accuracy of calibration and measurement.
3. The cross sensitivity will fluctuate by +/ -30% and may vary with the production batch of the sensor and the life of the sensor.
4. The cross-sensitivity includes but is not limited to the above gases, and the sensor may respond to other gases.
| Working humidity | 15 ~ 90%RH (non-condensing) |
| Working pressure | 90 to 110 kPa |
| Bias voltage | 0 mV |
| Storage time | 6 months (in special box) |
| Storage temperature | 0℃ to 20℃ |
