Product Details:
|
| Detection Range: | 0 To 2000 Ppm | Filter: | To Remove Acid Gases See Note On Page 2 |
|---|---|---|---|
| Filter Capacity: | > 20000 Ppm Hours | Sensitivity: | 70 ± 15 NA/ppm |
| Response Time (T90): | ≤10 S At 20°C | Recovery Time: | < 90 S (typically < 30 S) |
| Highlight: | 4CM Electrochemical carbon monoxide sensor,Fast response Electrochemical carbon monoxide sensor |
||

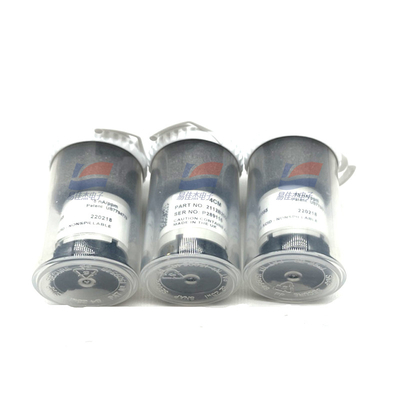

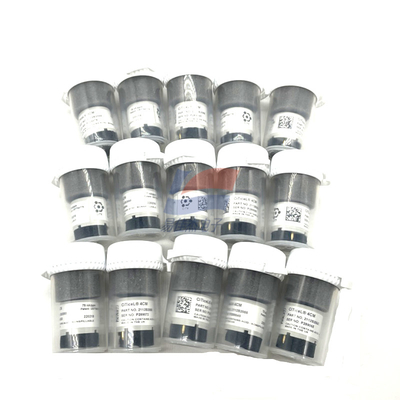

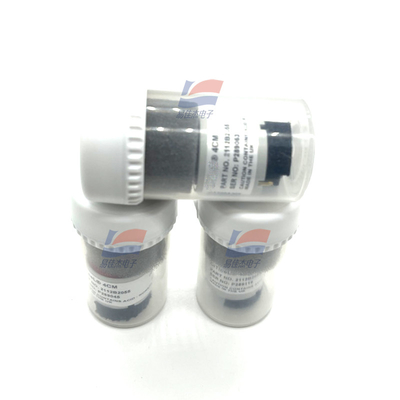

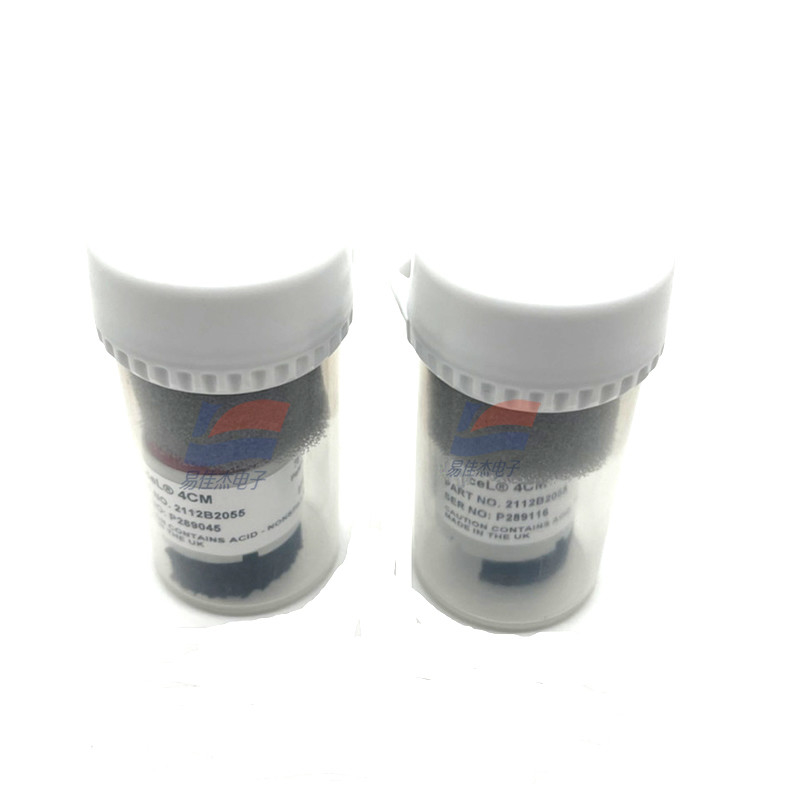

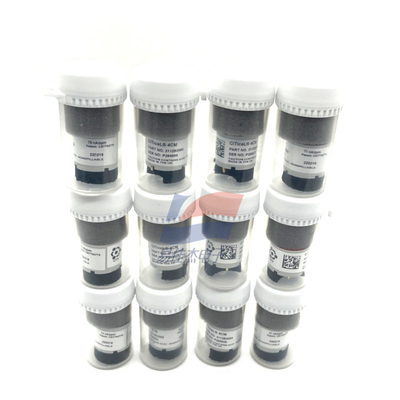

4CM Electrochemical carbon monoxide sensor Fast response and recovery time
Key Features & Benefits:
• Fast response and recovery time
• Superior long-term performance at temperature and humidity extremes
• Meets sensor requirements described in AQ6205-2006 and EN45544
IMPORTANT NOTE:
Connection should be made via recommended
mating parts only. Soldering to the sensor will
result in damage and invalidate the warranty.
All performance data is based on conditions
at 20°C, 50% RH and 1013 mBar, using City
Technology recommended circuitry and flow rates.
Temperature data gathered on a sample of
144 sensors. Data average ± 4.5 standard
deviations
| Resolution | <1 ppm typical |
| Bias Voltage | Not required |
| Housing Material | Noryl 110 |
| Pin Material | Gold over nickel plated brass |
| Weight | 5 g (nominal) |
