Product Details:
|
| Installation Style: | Through Hole | Product Type: | Air Quality Sensors One |
|---|---|---|---|
| Subcategory: | Sensors | Unit Weight: | 49.101 G |
| Highlight: | SGX-VOX Oxygen Sensor,Oxygen Ventilators Oxygen Sensor |
||
Product Description:

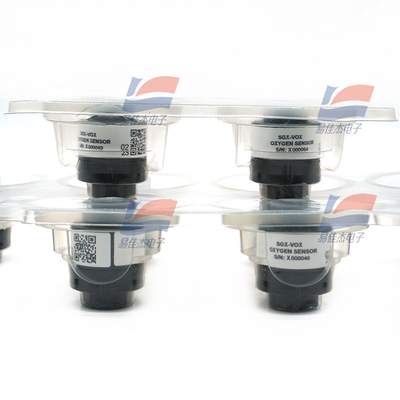

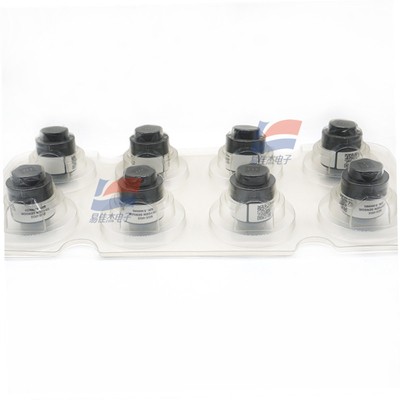

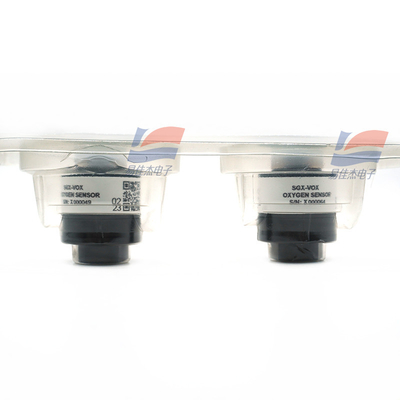

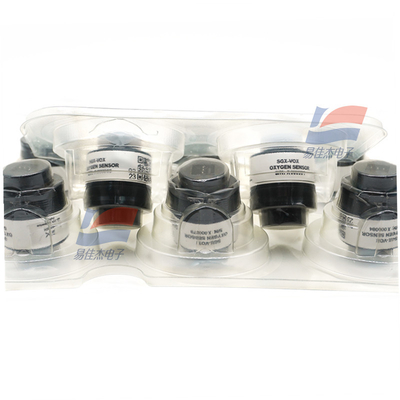

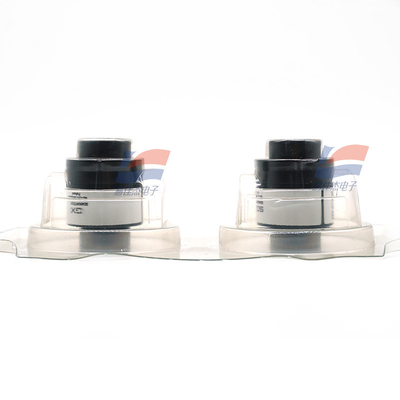

SGX-VOX oxygen sensor for oxygen ventilators
Features:
SGX Sensortech SGX-VOX respirator oxygen sensor is a 0% to 100% oxygen s gas (O2) sensor with onboard temperature compensation. The oxygen sensor has a <0.1% 02 zero current (offset) and a 9mV to 13mV output voltage range in air (measured at standard pressure and temperature). The SGX-VOX oxygen sensor has a T90 response time of <5 seconds and a T99 5 response time of <50 seconds. The O2 temperature compensation of the oxygen gas sensor is <2% in the temperature range from 0°C to 40 °C. The SGX-VOX oxygen sensor does not produce a cross-sensitivity effect because the toxic gas content reaches the threshold limit value (TLV). The oxygen sensor is not suitable for continuous operation at concentrations of carbon dioxide (CO2) above 25%. The SGX-VOX sensor is not designed for use in applications where radioactive gases are present.
Specifications:
| Type | Oxygen Sensor |
| Sensor Type | Oxygen (O) |
| Maximum operating temperature | + 50 C |
| Minimum operating temperature | -20 C |
| Working power supply voltage | 900 mV |
| Current rating | 10 mA |
