Product Details:
|
| Working Principle: | Electrochemistry Three Electrodes | Detection Range: | 0-100 Ppm Outline Size Diagram |
|---|---|---|---|
| Maximum Load: | 500 Ppm | Bottom Current: | < ± 0.4μA |
| Zero Drift: | (-20 To 50) -0.2 To 1 Ppm | Sensitivity: | 800±200 NA/ppm (positive Signal) |
| Highlight: | 500 ppm Hydrogen Sulfide Gas Sensor,4H2S-AS Hydrogen Sulfide Gas Sensor |
||

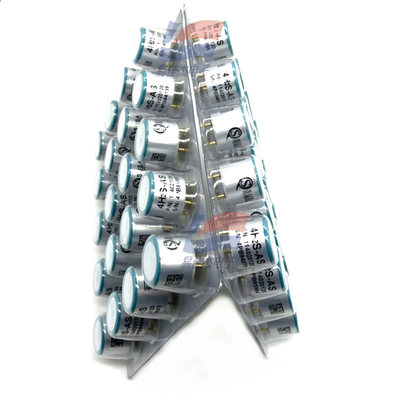

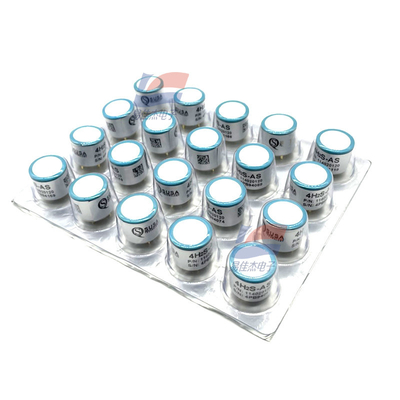

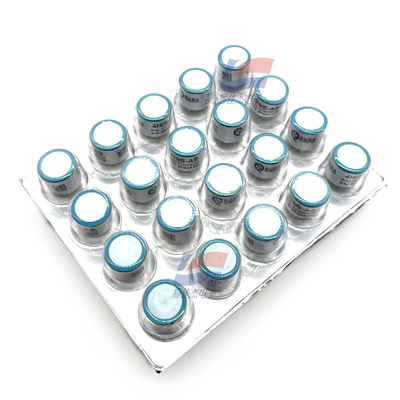

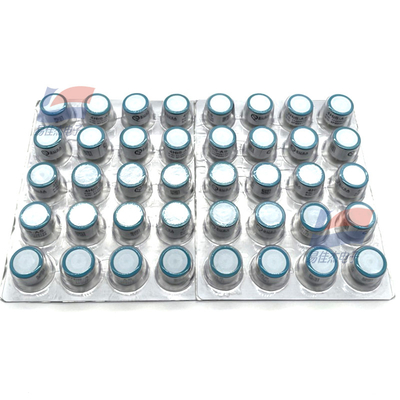

4H2S-AS Hydrogen Sulfide Gas Sensor (P/N: 114-020-120)
Electrical property:
Resolution 0.1ppm
Bias 0 mV (none)
Recommended resistance 5-30Ω
Physical property:
Weight 5 g
Azimuth requirement None
Working environment:
Intended use for most life safety detectors
Operating temperature range -40 to 50°C
Operating pressure range 800-1200 mbar
Operating humidity range 15%-95% RH (non-condensing)
| recommended storage environment | 0-20°C in a sealed container |
| Expected service life | in the air for 24 months |
| Storage period original | package 6 months |
| Warranty period | 12 months |
