Product Details:
|
| Sensitivity: | 80 ~ 130nA/ppm | Linear Range: | +/-30ppm |
|---|---|---|---|
| Resolution: | 0.5ppm | Service Life: | 2 Years |
| Storage Period: | 6 Months | ||
| Highlight: | Carbon Monoxide CO Sensor,Electrochemical CO Sensor,CO-BF Carbon Monoxide Sensor |
||
Product Description:

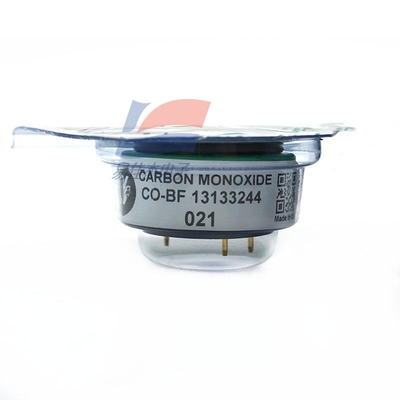

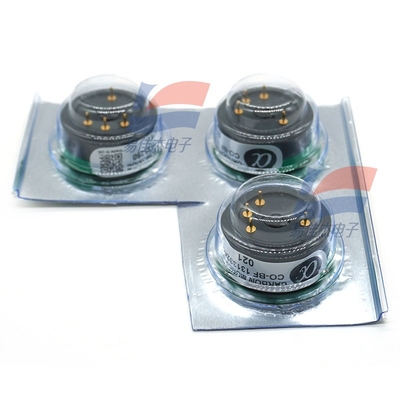

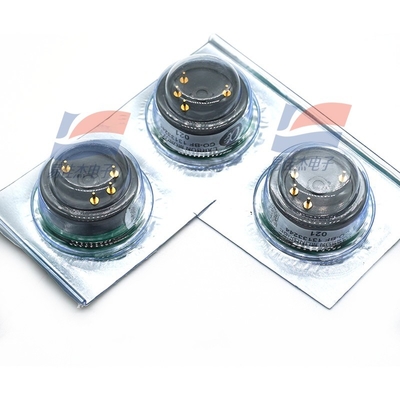

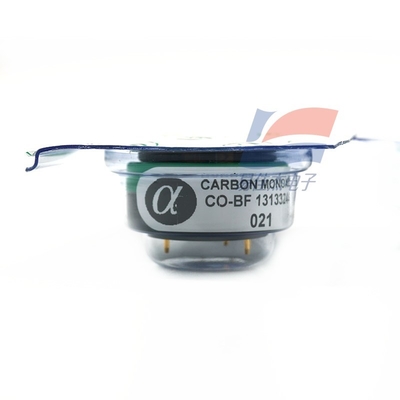

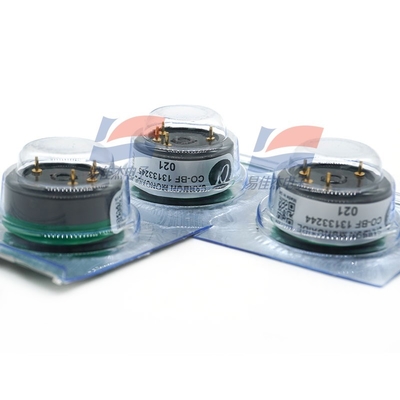

CO-BF Electrochemical Carbon Monoxide CO Sensor
Features:
First, carbon monoxide sensor /CO sensor -CO-BF description
CO-BF carbon monoxide sensor is the electrochemical principle of the sensor, the electrochemical sensor has the advantages of high sensitivity, good selectivity, low concentration output linearity and so on.
Second, carbon monoxide sensor /CO sensor -CO-BF application
Mainly used in petrochemical, environmental protection, coal mining, automotive and other fields
Third, carbon monoxide sensor /CO sensor -CO-BF main characteristics
Measuring range: 5000ppm
Sensitivity: 80 ~ 130nA/ppm
Response time: < 25s
Linear range: +/-30ppm
Overload: 10000ppm
Resolution: 0.5ppm
Size: Φ32.3*16.5, with filter
Service life: 2 years
Storage period: 6 months
Operating temperature: -30 ~ 50℃
Working humidity: 15 ~ 90%RH
Load resistance: 10-47Ω
Specifications:
| Overload | 5000ppm |
| Response time | < 25s |
| Size | Φ32.3×16.5 |
| Carbon monoxide detection range | 0-10000ppm |
| Sensitivity | 420 to 650 nA/ppm |
