Product Details:
|
| Measuring Range: | 50ppm | Sensitivity: | 950 ~ 1400nA/ppm |
|---|---|---|---|
| Response Time: | < 25s | Linear Range: | -2.5ppm |
| Highlight: | H2S-AH Hydrogen Sulfide Sensor,High current H2S sensor,H2S sensor portable Instrument |
||
Product Description:

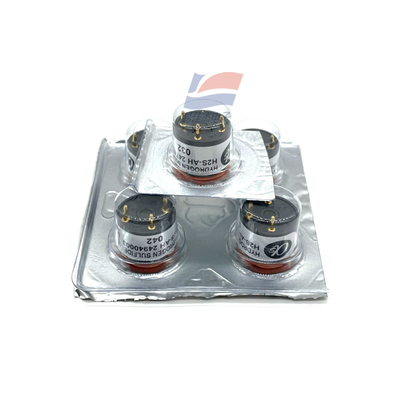

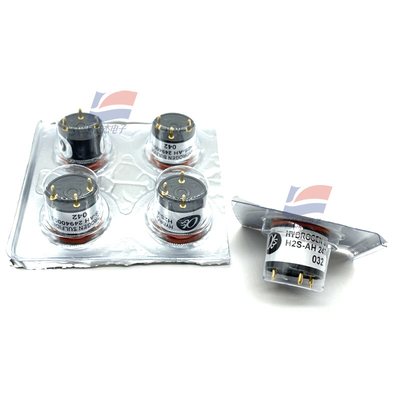

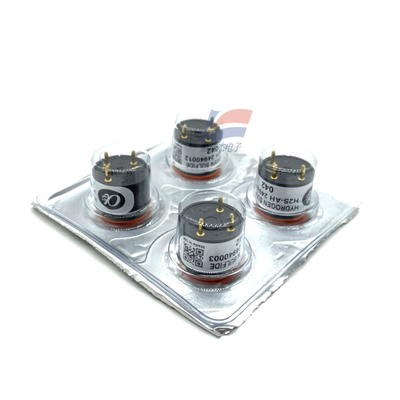

H2S-AH Hydrogen Sulfide Sensor (High current H2S sensor) For Hydrogen Sulfide portable Instrument
Features:
First, hydrogen sulfide sensor (high current H2S sensor)H2S-AH Product Description:
Hydrogen sulfide sensor H2S-AH is mainly characterized by two years of life, large current output; Typically used in hydrogen sulfide portable instrument.
Second, hydrogen sulfide sensor (high current H2S sensor)H2S-AH main parameters
Measuring range: 50ppm
Sensitivity: 950 ~ 1400nA/ppm
Response time: < 25s
Linear range: -2.5ppm
Overload: 250ppm
Resolution: 0.03ppm
Size: Φ20.2*16.5
Service life: 2 years
Storage period: 6 months
Operating temperature: -30 ~ 50℃
Working humidity: 15 ~ 90%RH
Load resistance: 10 ~ 47Ω
Specifications:
| Overload | 50ppm |
| Response time | < 25s |
| Size | Φ20.2×16.5 |
| Carbon monoxide detection range | 0-250ppm |
| Sensitivity | 420 to 650 nA/ppm |
