Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0-100 Ppm |
|---|---|---|---|
| Maximum Overload: | 500 Ppm | Sensitivity*: | 0.7 ± 0.15 μA/ppm |
| Response Time (T90)*: | 20 Seconds At 20OC | Baseline Offset (clean Air)*: | < ±0.5 Ppm Equivalent |
| Zero Shift (-40°C To +50°C)*: | < ±0.4 Ppm Equivalent | ||
| Highlight: | TBC Operating Principle H2S Gas Sensor,3-electrode electrochemical H2S Gas Sensor,Hydrogen Sulfide H2S Gas Sensor |
||

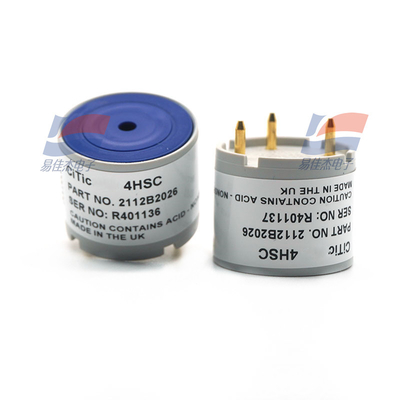

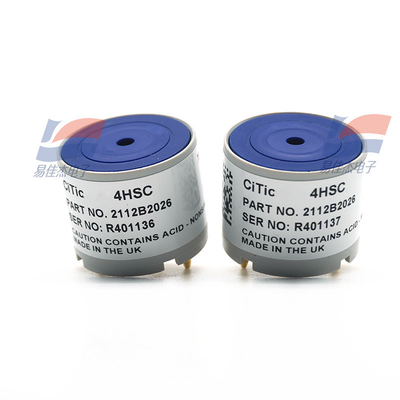

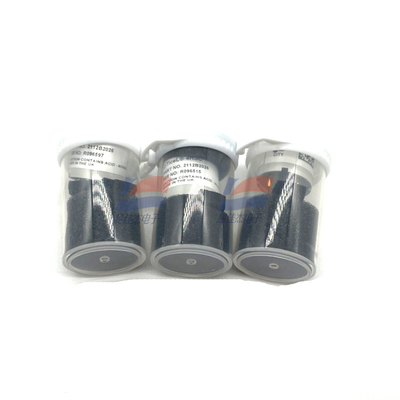

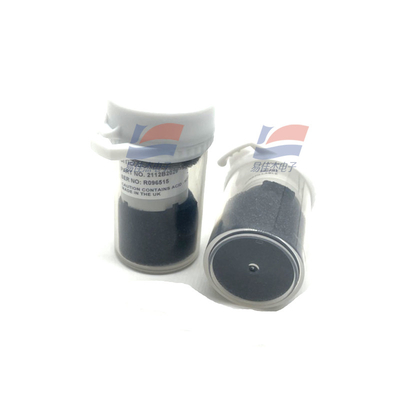

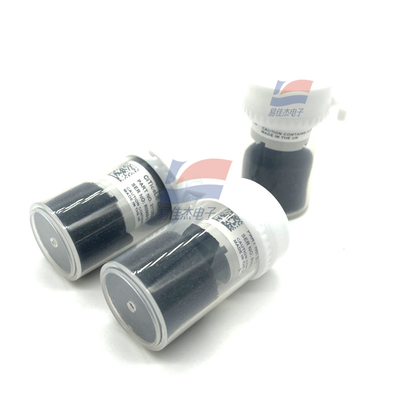

4HSC Hydrogen Sulfide (H2S) Gas Sensor Part Number: TBC Improved performance variability
Key Features & Benefits:
• Industry leading reliability
• Improved performance variability
Poisoning:
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is
important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into
instruments, and operation.
When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is
fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
| Repeatability * | < ±5% |
| Linearity* | Linear <±5% |
| Bias Voltage | Not required |
| Housing Material | Noryl 110 |
| Weight | 5 g (approx.) |
| Maximum at 500ppm | 0.5 mA |
| Long Term Output Drift* | < 20% per annum |
| Recommended Storage Temp | 10°C to +30°C |
