Product Details:
|
| Nominal Range: | 0-1000ppm | Maximum Overloa: | 2000ppm |
|---|---|---|---|
| Expected Operating Life: | Two Years In Air | Output Signal: | 0.015 ± 0.01 μA/ppm |
| Resolution: | 2ppm | Temperature Range: | -20°C To +50°C |
| Pressure Range: | Atmospheric ± 10% | T90 Response Time: | <90 Seconds |
| Relative Humidity Range: | 15 To 90% Non-condensing | ||
| Highlight: | 4HYT Hydrogen Sensor,High Resolution Hydrogen Sensor,0-1000ppm Hydrogen Sensor |
||

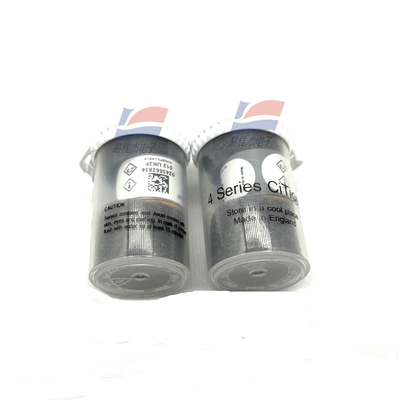

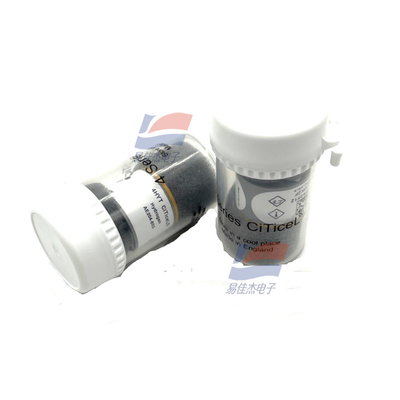

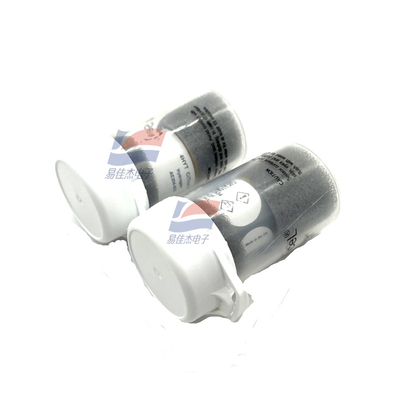

4HYT 0~1000ppm hydrogen sensor for gas detectors
IMPORTANT NOTE: Connection should be made
via PCB sockets only. Soldering to the pins will
seriously damage your sensor.
Cross-sensitivity Data
CiTiceLs may exhibit a response to certain gases in a sample other than the target gas. 4HYT CiTiceLs have been
tested with a number of commonly cross-interfering gases and the results are given below. The table shows the typical
response to be expected from a sensor when exposed to a given test gas concentration (relevant to safety, e.g. TLV
levels).
| Bias Voltage | Not required |
| Repeatability | 2% of signal |
| Output Linearity | Linear |
| Weight | 5g (approx.) |
| Storage Life | Six months in CTL container |
| Position Sensitivity | None |
| Recommended Storage Temperature | 0-20°C |
| Warranty Period | 12 months from date of despatch |
