Product Details:
|
| Range: | 0 To 100 Ppm | Sensitivity: | 0.135 ± 0.035 UA/ppm |
|---|---|---|---|
| Resolution: | 0.5ppm | Long-term Stability: | < 2% Signal Value/month |
| Operating Temperature: | -20 ℃ To 40 ℃ | Operating Humidity: | 15 To 90%RH (non-condensing) |
| Working Pressure: | 90 To 110 KPa | ||
| Highlight: | 4NH3-100 Zero bias ammonia sensor,CLE-1012-401 Zero bias ammonia sensor |
||

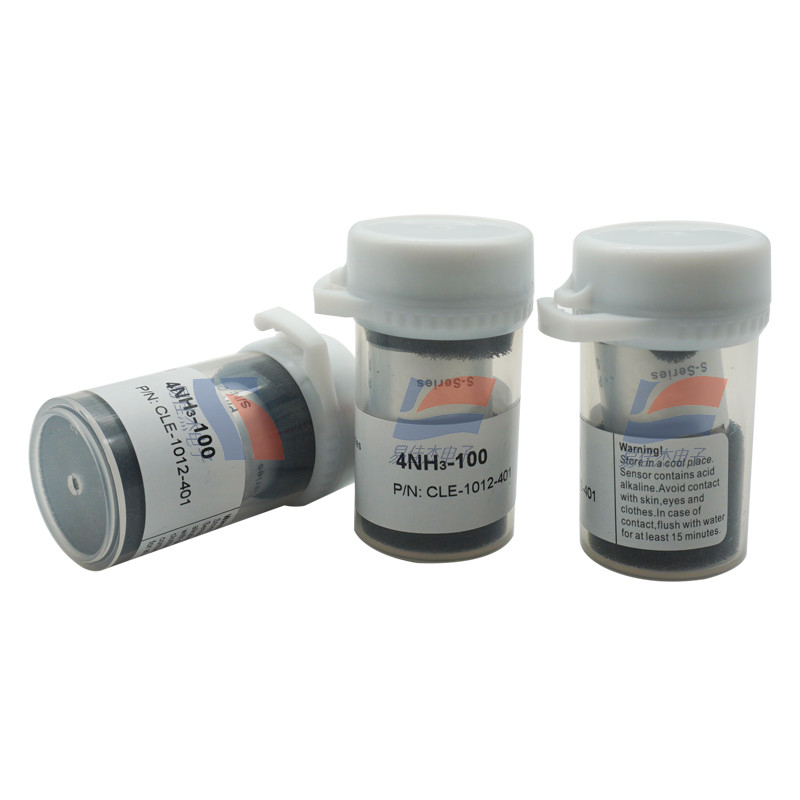

4NH3-100 Zero bias ammonia sensor 0-100 ppm CLE-1012-401
Instructions for use:
1. All the above performance specifications are measured at ambient conditions: temperature 20 ℃, relative humidity 50%RH, one atmospheric pressure (100 kPa or ambient pressure).
2. Target gas is recommended for calibration. In the case of calibration with cross-sensitive gases, we do not guarantee the accuracy of calibration and measurement.
3. The cross sensitivity will fluctuate by +/ -30% and may vary with the production batch of the sensor and the life of the sensor.
4. The cross-sensitivity includes but is not limited to the above gases, and the sensor may respond to other gases.
| Bias voltage | 0 mV |
| Storage time | 6 months (in special box) |
| Storage temperature | 0℃ to 20 ℃ |
| Service life | ≥1 year in the air |
| Warranty period | 12 months after delivery |
