Product Details:
|
| Range: | 0 ~ 2000 Ppm | Maximum Load: | 4000 Ppm |
|---|---|---|---|
| Sensitivity (20°C): | 0.015 ± 0.005 μA/ppm | Baseline (20°C): | < ±0.2 μA |
| Baseline Drift (-40°C ~ 50°C): | < 3 Ppm | Resolution: | 2 Ppm |
| Highlight: | 059-0600-000 Ammonia Electrochemical Sensor,4NH3-2000 Ammonia Electrochemical Sensor |
||

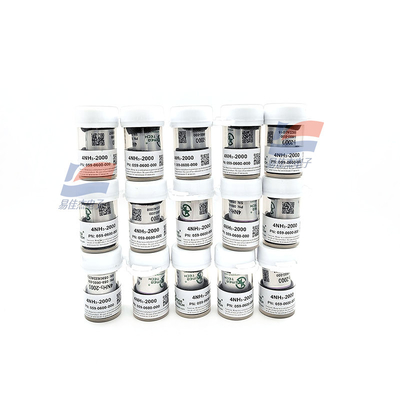

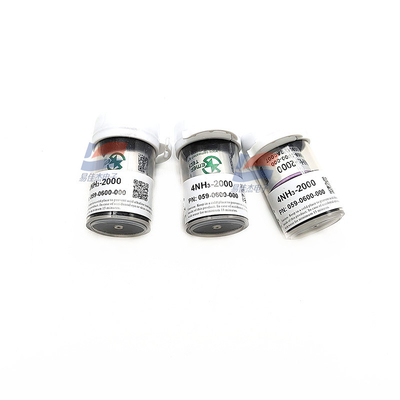

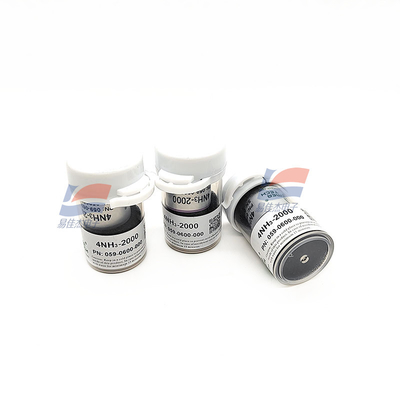

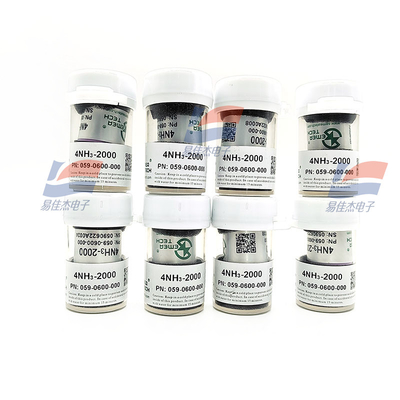

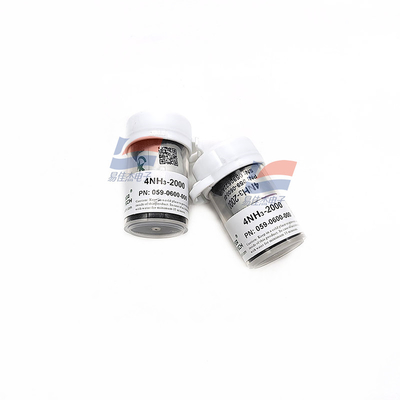

4NH3-2000 Ammonia electrochemical sensor (Part number: 059-0600-000) Used to measure the concentration of ammonia gas
Product description:
This product is used to measure the concentration of ammonia gas and can replace the standard four-series ammonia electrochemical sensor through the pin.
Installation instructions:
The electrode foot should be connected correctly, because the wrong connection position will affect the normal operation of the sensor.Sensors should avoid contact with organic solvents, paints, oils and high concentration gases; please
Do not use adhesive directly on or near the sensor to prevent plastic
Rupture of the material shell; If used in special circumstances, please contact us in advance.
| Temperature range | -40°C ~ 50°C |
| Pressure range | 1 ± 0.1 standard atmosphere |
| Humidity range | 15% ~ 90%RH (non-condensing) |
| Long-term stability | < 2% signal value/month |
| Storage temperature | Storage temperature |
| Service life | 2 years (in the air) |
| Storage time | 6 months (in special box) |
| Warranty Period | 12 months |
