Product Details:
|
| Range: | 0 To 20 Ppm | Maximum Load: | 250 Ppm |
|---|---|---|---|
| Sensitivity: | 0.60 ±0.15 UA/ppm | Baseline (20 OC): | < ± 0.4 UA |
| Resolution: | 0.1ppm | ||
| Highlight: | CLE-0321-400 Nitrogen dioxide sensor,4NO2-20 Nitrogen dioxide sensor,Classic Line Nitrogen dioxide sensor |
||

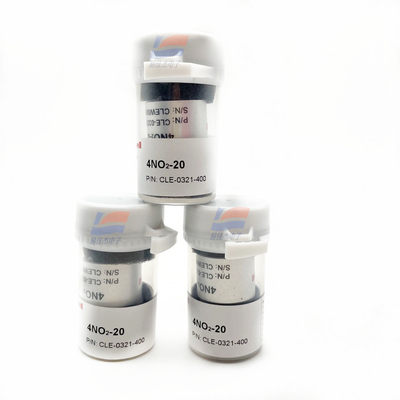

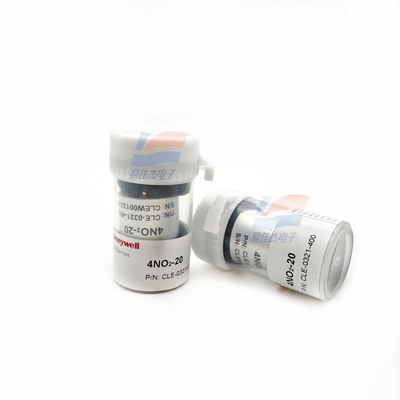

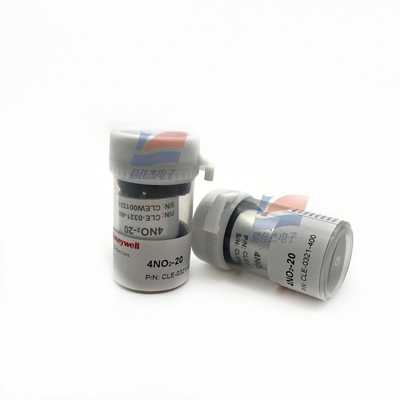

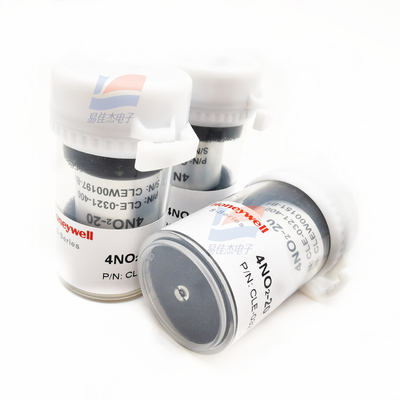

4-NO2-20 4NO2-20 Classic Line Nitrogen dioxide sensor 0-20 ppm CLE-0321-400
Instructions for use:
1. All the above performance specifications are measured at ambient conditions: temperature 20 ℃, relative humidity 50%RH, one atmospheric pressure (100 kPa or ambient pressure).
2. Target gas is recommended for calibration. In the case of calibration with cross-sensitive gases, we do not guarantee the accuracy of calibration and measurement.
3. The cross sensitivity will fluctuate by +/ -30% and may vary with the production batch of the sensor and the life of the sensor.
4. The cross-sensitivity includes but is not limited to the above gases, and the sensor may respond to other gases.
| Operating temperature | -20 ℃ to 50 ℃ |
| Operating humidity | 15 to 90%RH (non-condensing) |
| Working pressure | 90 to 110 kPa |
| Bias voltage | 0 mV |
| Storage time | 6 months (in special box) |
