Product Details:
|
| Range: | 0 To 250 Ppm | Maximum Load: | 1000 Ppm |
|---|---|---|---|
| Sensitivity: | 0.40 ± 0.08 UA/ppm | Resolution: | 0.5ppm |
| Long-term Stability: | < 2% Signal Value/month | ||
| Highlight: | 4NO-250 Nitric oxide sensor,Classic Line Nitric oxide sensor,CLE-0522-400 Nitric oxide sensor |
||

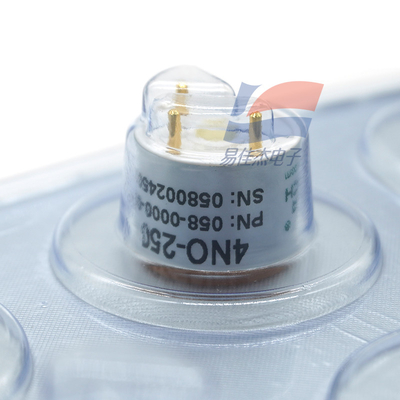

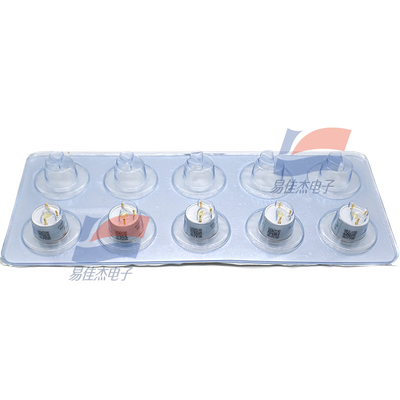

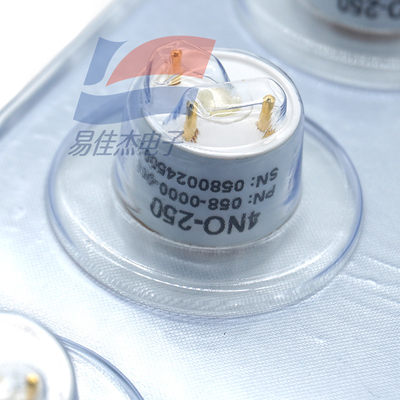

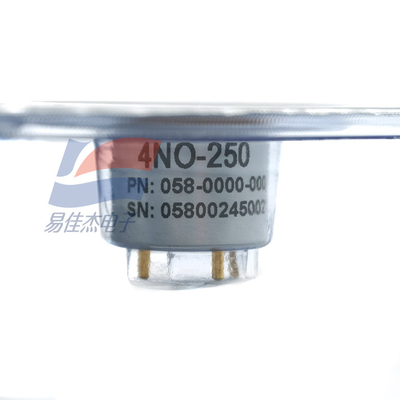

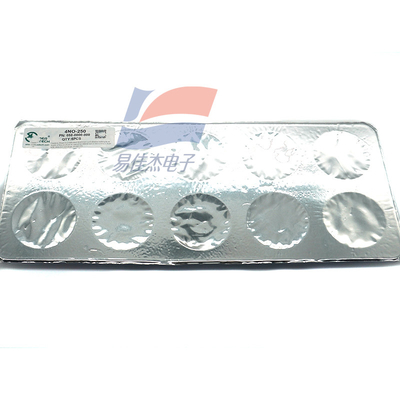

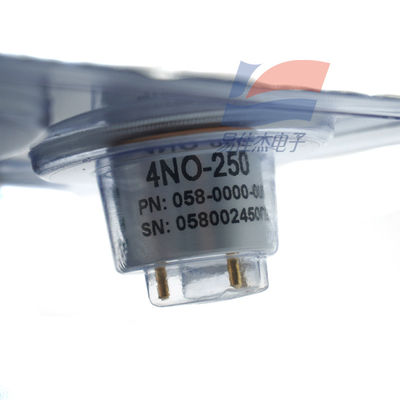

4-NO-250 4NO-250 Classic Line Nitric oxide sensor 0-250 ppm CLE-0522-400
Instructions for use:
1. All the above performance specifications are measured at ambient conditions: temperature 20 ℃, relative humidity 50%RH, one atmospheric pressure (100 kPa or ambient pressure).
2. Target gas is recommended for calibration. In the case of calibration with cross-sensitive gases, we do not guarantee the accuracy of calibration and measurement.
3. The cross sensitivity will fluctuate by +/ -30% and may vary with the production batch of the sensor and the life of the sensor.
4. The cross-sensitivity includes but is not limited to the above gases, and the sensor may respond to other gases.
| weighs | 5g |
| Bias | + 300 mV |
| Storage time | 6 months (in special box) |
| Storage temperature | 0 ℃ to 20 ℃ |
| Service life | 2 years in the air |
| Warranty period | 12 months after delivery |
