Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0-250 Ppm NO |
|---|---|---|---|
| Maximum Overload: | 1000 Ppm NO | Resolution (Electronics Dependent): | 0.5 Ppm |
| Sensitivity*: | 0.40 ± 0.08 MA/ppm | ||
| Highlight: | AF4NT-800 NO Gas Sensor,4NT Nitric Oxide Gas Sensor |
||

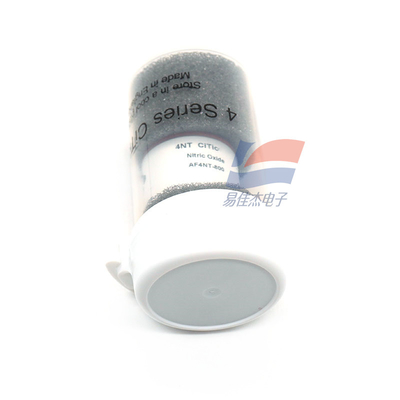

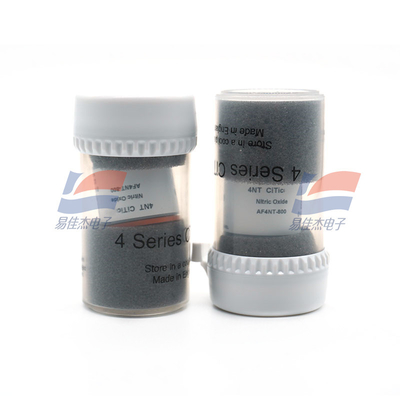

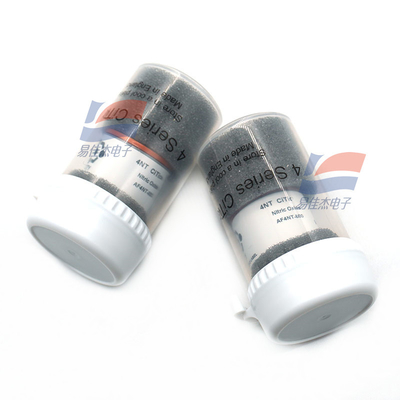

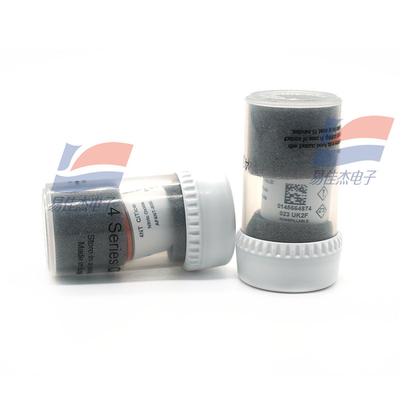

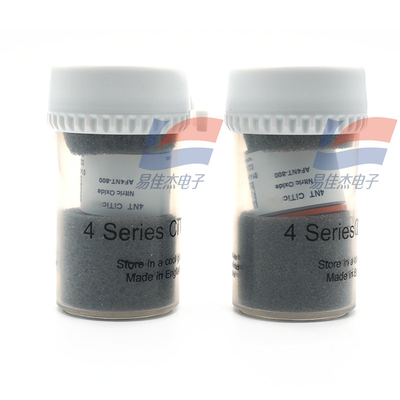

4NT Nitric Oxide (NO) Gas Sensor Part Number: AF4NT-800 Improved performance variability
IMPORTANT NOTE:
Connection should be made
via PCB sockets only. Soldering to the pins will
seriously damage your sensor.
Poisoning:
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is
important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into
instruments, and operation.
When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is
fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
| Weight | 5g (approx.) |
| Operating Temperature Range | -20°C to +50°C |
| Operating Pressure Range | 1 atm ± 10% |
| Operating Humidity Range | 15% to 90% RH non-condensing |
| Long Term Output Drift | < 2% signal drift / month |
| Recommended Storage Temp | 0 to 20°C |
| Expected Operating Life | 2 years in air |
| Storage Life | 6 months in sealed container |
