Product Details:
|
| Technology: | Electrochemical | Measurement Range: | 0-25% Vol. O2 |
|---|---|---|---|
| Maximum Overload: | 30% Vol. O2 | Output Signal*: | 80 - 130 MA In Air |
| T90 Response Time*: | <15 Seconds | T97 Response Time*: | <35 Seconds |
| Highlight: | Industrial Safety Oxygen Gas Sensor,30% vol. Oxygen Gas Sensor,4OxLL Oxygen O2 Gas Sensor |
||

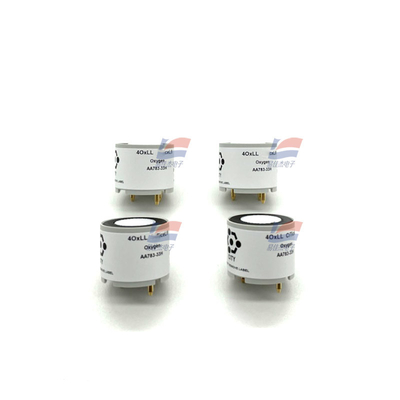

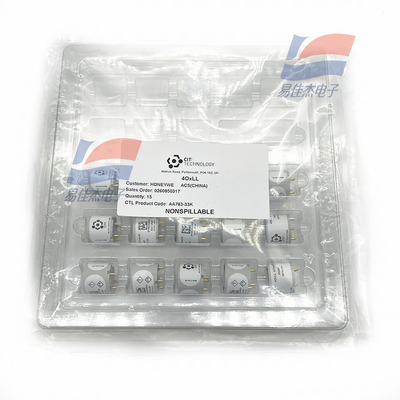

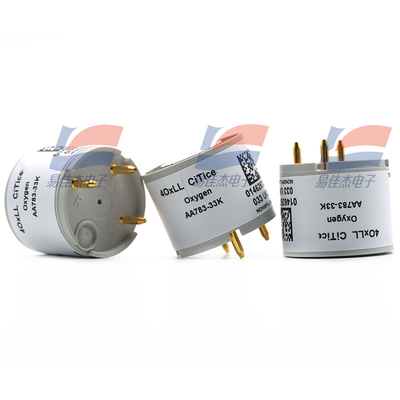

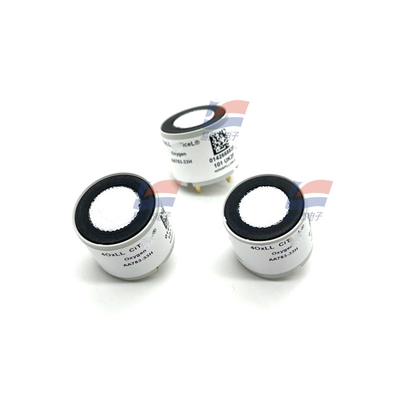

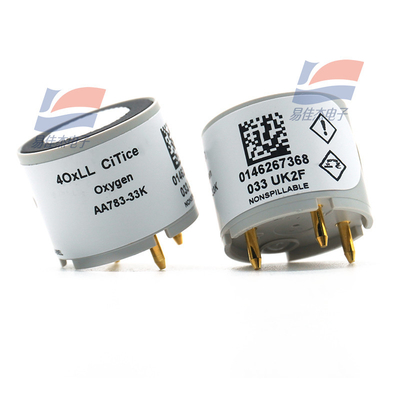

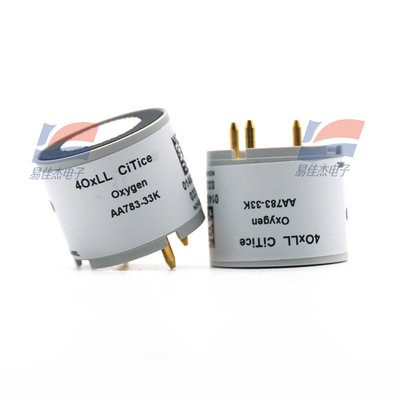

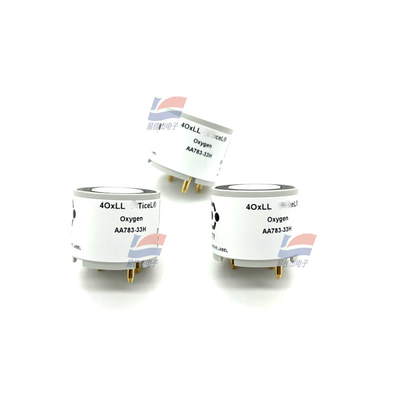

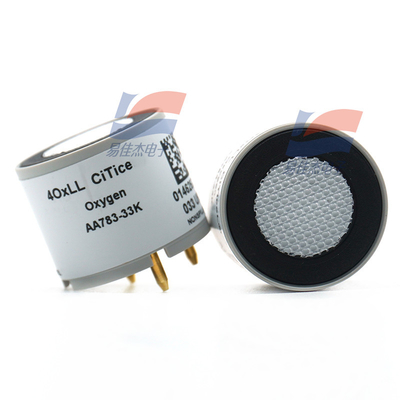

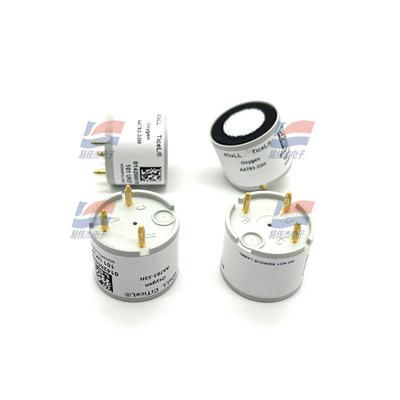

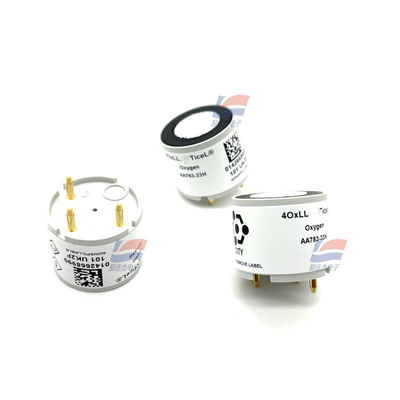

4OxLL Oxygen (O2) Gas Sensor for Industrial Safety Part Number: AA783-33H
Key Features and Benefits:
• Long Life
• Improved field reliably
• Superior environmental performance
• Enhanced response time in extreme conditions
IMPORTANT NOTE:
When installing the sensor into instrumentation,
the sensor vent hole should not be blocked. The
instrument should also be adequately vented.
If the sensor vent hole is blocked or if the
instrument is not adequately vented, sensor
performance will be compromised.
For further details, refer to Operating Principles
OP19.
| Bias Voltage | -600 ± 10 mV |
| Power Rating at 20.9%O2 | 0.5 mW |
| Weight | 5 ± 0.2 g |
| Orientation Sensitivity | <0.2%vol. O2 equivalent |
| Operating Temperature Range | -40°C to 60°C |
| Recommended Storage Temp | 0°C to 20°C in original packaging |
| Operating Humidity Range | 15%rH to 90%rH non-condensing |
| Operating Pressure Range | Atmospheric ± 20% |
