Product Details:
|
| Operating Principle: | Catalytic Oxidation | Gases Detected: | Combustible Gases |
|---|---|---|---|
| Range: | 0-100% LEL | Sensitivity*: | 24 ± 4 MV/%methane |
| Operating Voltage: | 3.0 ± 0.02 VDC | Detector Operating Current: | 75 ± 7 MA |
| Highlight: | PM483-000 Combustible Gas Sensor,4P-75C Combustible Gas Sensor,4P75C Combustible Gas Sensor |
||

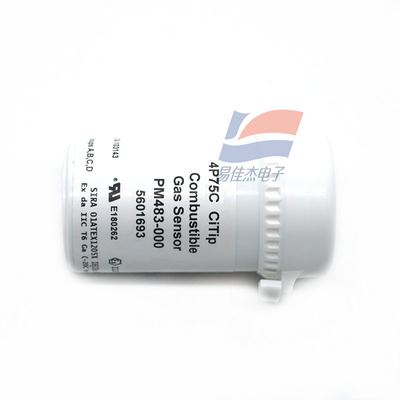

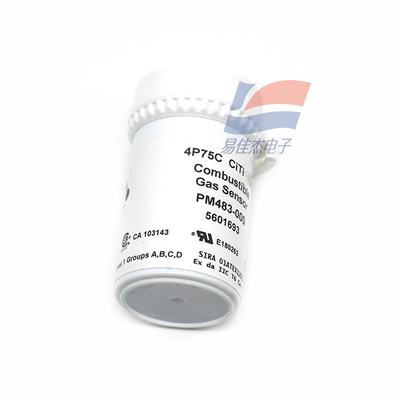

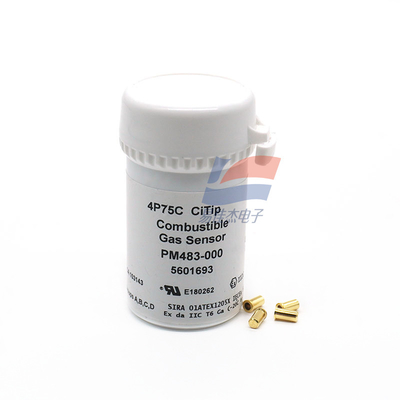

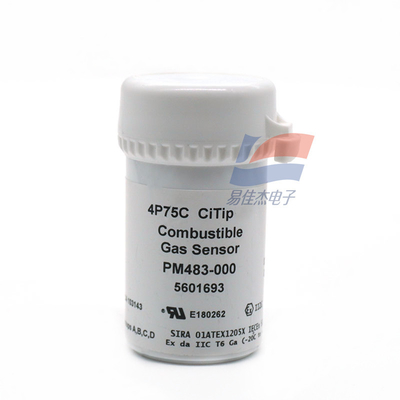

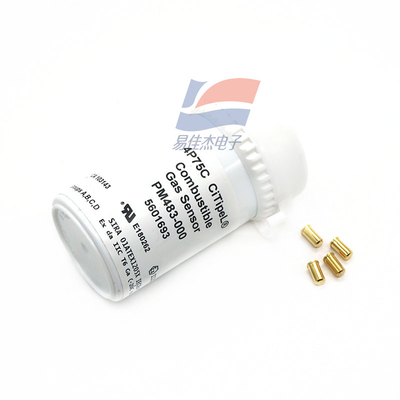

4P-75C 4P75C Combustible Gas Sensor Part Number: PM483-000 Enhanced H2S and silicone poison resistance
Key Features & Benefits:
• ATEX, UL and CSA Approvals
• Withstands EN/IEC 60079-0 impact test
• Enhanced H2S and silicone poison resistance
IMPORTANT NOTE:
The accelerated life tests, poison resistance and temperature performance data shown below
does not form part of the product specification and is supplied for guidance only.
| Casing Material | Stainless steel 316 |
| Pin Material | Gold plated brass |
| Weight | 24 g (nominal) |
| Operating Temperature Range | -20ºC to +55ºC |
| Operating Pressure Range | 1 atm ± 20% |
