Product Details:
|
| Range: | 0-100% LEL | Sensitivity*: | 28 ± 5 MV/%methane |
|---|---|---|---|
| T90 Response Time*: | <20 Seconds (methane) | H2S Filter Lifetime: | Typically 1000 Ppm Hr |
| Linearity: | Linear Up To 3% Methane | Operating Voltage: | 3.3 ± 0.02 VDC |
| Highlight: | CSA Approved Combustible Gas Sensor,ATEX Approved Combustible Gas Sensor |
||

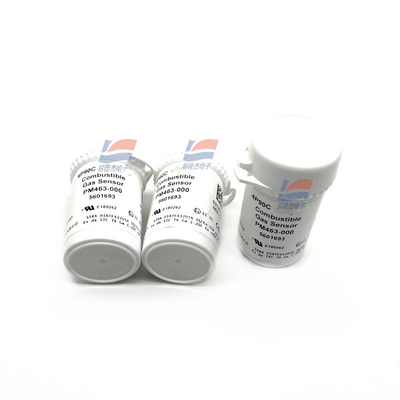

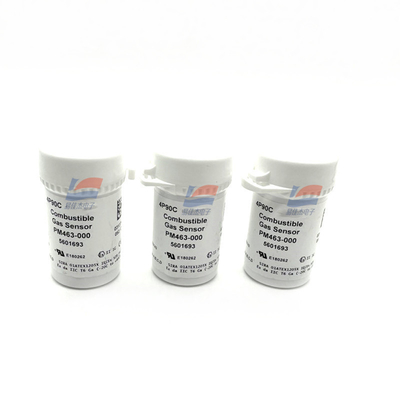

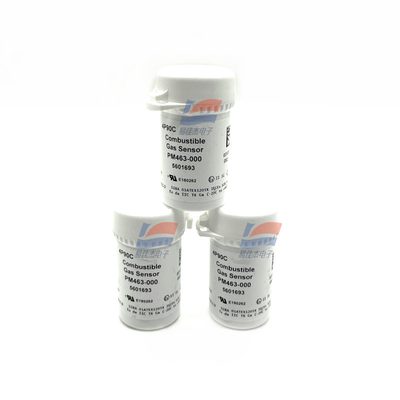

4P90C Combustible Gas Sensor Part Number: PM463-000 ATEX, UL and CSA Approvals
Key Features & Benefits:
• ATEX, UL and CSA Approvals
• Withstands EN/IEC 60079-0 impact test
• Enhanced H2S and silicone poison resistance
IMPORTANT NOTE:
The relative response data shown below does not form part of the product specification
and is supplied for guidance only. For the most accurate measurements, an instrument
should be calibrated using the gas under investigation.
| Operating Voltage | 3.3 ± 0.02 VDC |
| Detector Operating Current | 75± 7 mA |
| Maximum Power Consumption | 288 mW |
| Resolution | 1% LEL |
| Casing Material | Stainless steel 316 |
