Product Details:
|
| Measuring Range: | 50ppm | Sensitivity: | 1500 ~ 2000nA/ppm |
|---|---|---|---|
| Response Time: | < 30s | Linear Range: | -1 ~ -2ppm |
| Overload: | 200ppm | Service Life: | 2 Years |
| Highlight: | electrochemical hydrogen sulfide gas sensor,H2S-BH hydrogen sulfide gas sensor,High Current hydrogen sulfide gas sensor |
||
Product Description:

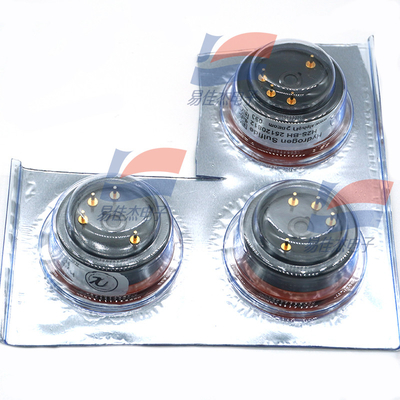

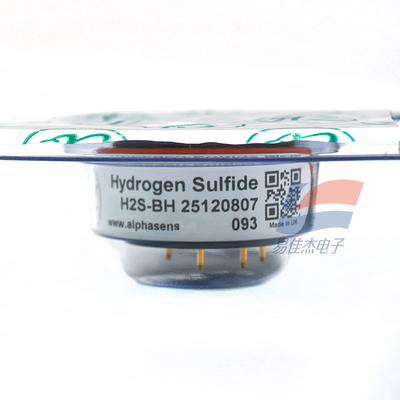

H2S-BH high current electrochemical hydrogen sulfide gas sensor
Features:
First, hydrogen sulfide gas sensor H2S-BH Product Description:
The main features of hydrogen sulfide gas sensor H2S-BH: two years of life, large current output, etc., typically used in stationary hydrogen sulfide transmitters.
Second, hydrogen sulfide gas sensor H2S-BH main parameters
Measuring range: 50ppm
Sensitivity: 1500 ~ 2000nA/ppm
Response time: < 30s
Linear range: -1 ~ -2ppm
Overload: 200ppm
Resolution: 0.02ppm
Size: Φ32.3*16.5
Service life: 2 years
Storage period: 6 months
Operating temperature: -30 ~ 50℃
Working humidity: 15 ~ 90%RH
Load resistance: 10 ~ 47Ω
Specifications:
| Overload | 50ppm |
| Response time | < 25s |
| Size | Φ32.3×16.5 |
| Carbon monoxide detection range | 0-200ppm |
| Sensitivity | 420 to 650 nA/ppm |
