Product Details:
|
| Maximum Load: | 90% O2 | Output Signal: | -350 ±50 μA In Air |
|---|---|---|---|
| Baseline: | -40 ~ 10 μA (nitrogen) | Resolution: | 0.1% O2 |
| Highlight: | CLE-0231-400 Electrochemical Oxygen Gas Sensor,High Accuracy Oxygen Gas Sensor,4O2-LQ O2 Gas Sensor |
||
Product Description:

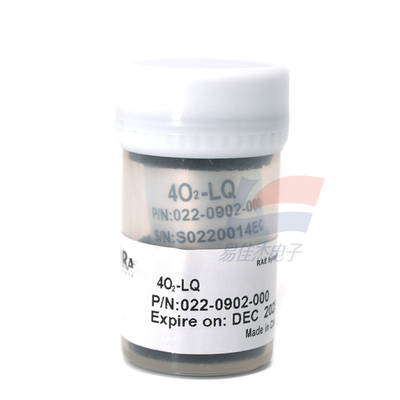

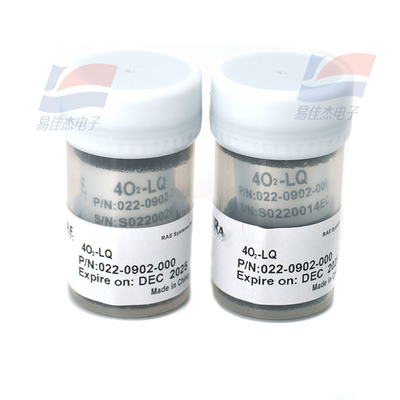

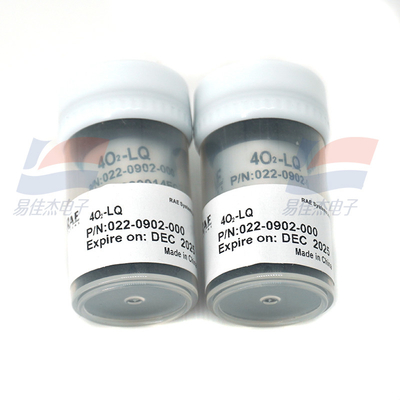

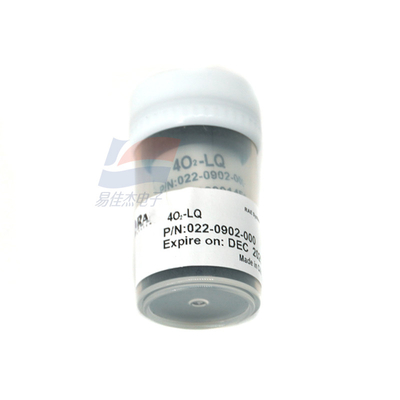

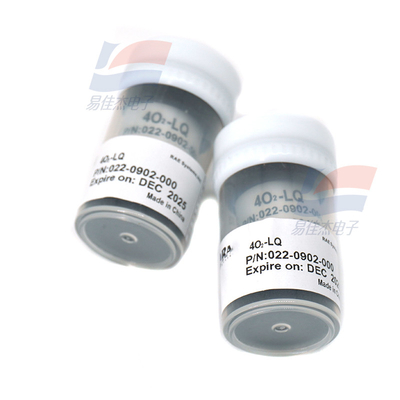

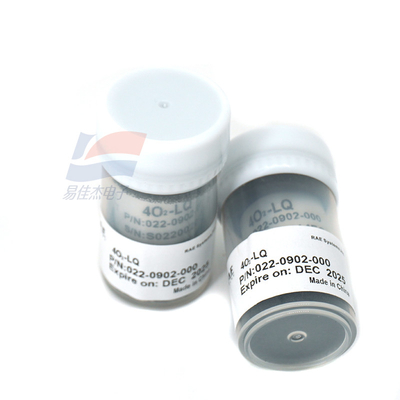

4O2-LQ CLE-0231-400 0 to 30% O2 Electrochemical Oxygen Gas Sensor
Features:
Product Model: CLE-0231-400
Range: 0 to 30% O2
Maximum load: 90% O2
Output signal: -350 ±50 μA in air
Baseline: -40 ~ 10 μA (nitrogen)
Resolution: 0.1% O2
Response time (T90) : ≤ 30 seconds
Linearity: Linearity
Long-term stability: < 2% signal value /3 months
Operating temperature: -20 oC to 50 oC
Operating humidity: 5 to 90%RH(non-condensing)
Working pressure: 80 to 120 kPa
Bias: -600 mV
Storage time: 6 months
Storage temperature: 0 oC to 20 oC
Service life: 2 years in the air
Weight: About 5 grams
Azimuth requirements: None
Specifications:
| Range | 0 to 30% O2 |
| Resolution | ≤ 30 seconds |
| Linear error | Linearity |
| Service life | 2 years in the air |
