Product Details:
|
| Highlight: | Industrial Applications Gas Sensor,Industrial Grade Gas Sensor,R-4OX Gas Sensor |
||
|---|---|---|---|

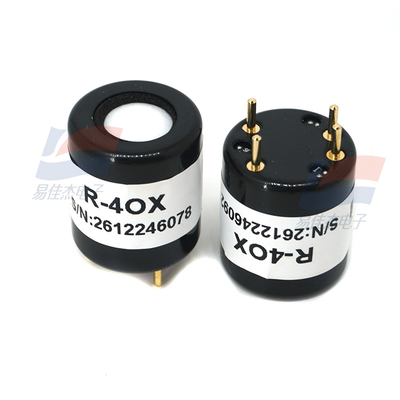

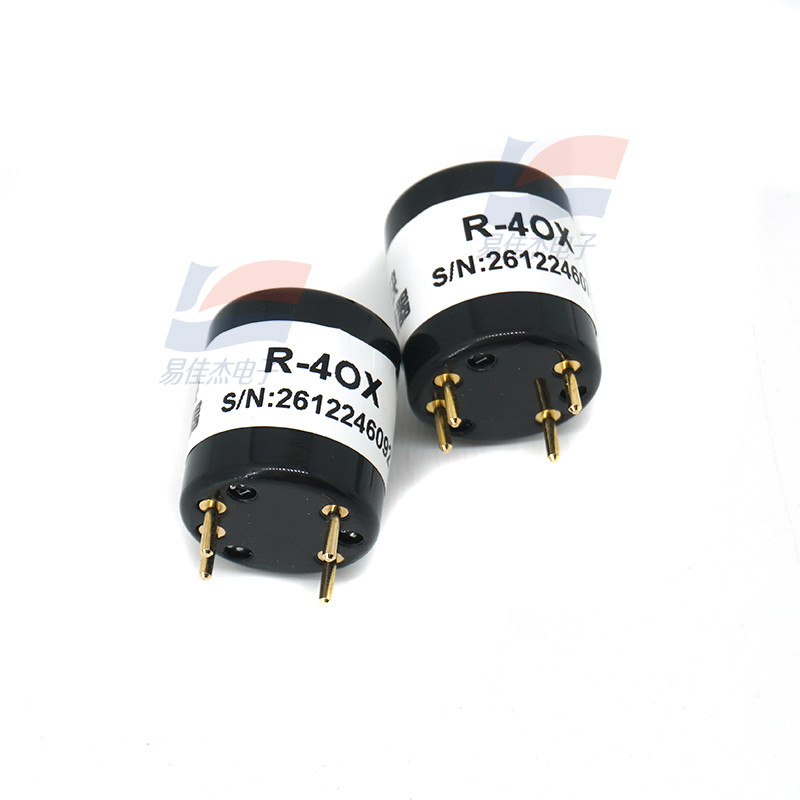

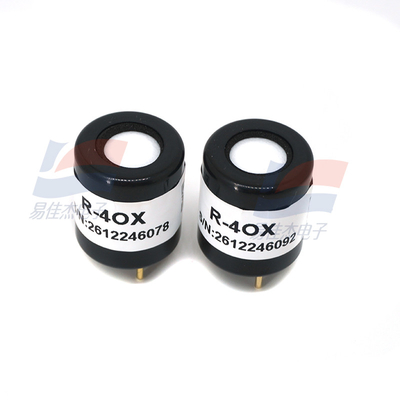

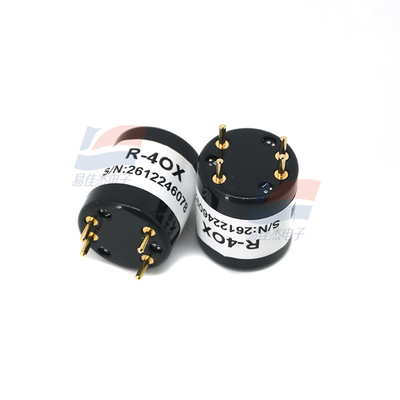

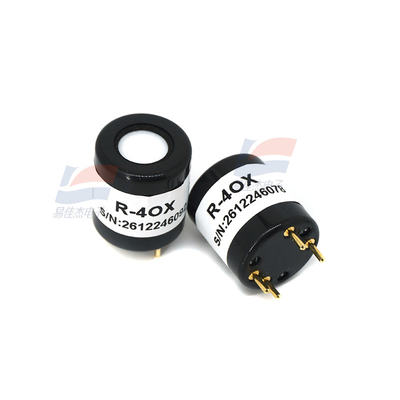

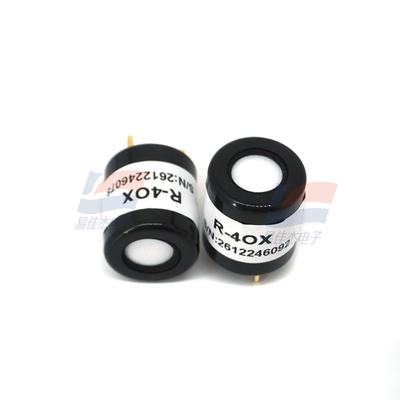

R-4OX High Quality And Stability Industrial Grade Gas Sensor
High stability, fast response and recovery time, strong adaptability to the environment, low cross-sensitivity to methanol.
Product features:
● Good long-term stability
● High consistency and high precision
● Fast response speed
● Strong anti-cross-interference ability,
● Good linearity
● Strong adaptability to harsh environments
| Detection gas | Oxygen 02 |
| Sensitivity | 0.1±0.03mA |
| Typical baseline range (pure air) | <0.6%VOL 02 |
| T90 response time | <10 seconds |
| Range | 0-25% Oxygen |
| Maximum load | 30% Oxygen |
| Recommended load resistance | 10Ω |
| Operating temperature range | -30- + 50°C |
| Pressure range | 800-1 200mbar |
| Humidity range | 15% - 95%RH |
| Long-term output drift | < 5% per year |
| Storage temperature | 0- -20℃ |
| Expected working life | > 24 months |
| 2000ppm maximum current | 0.01A |
| Maximum O/C voltage | 0.9V |
| Maximum S/C current | 0.5A |
