Product Details:
|
| Technical Principle: | Photoionization | Measuring Range: | 0~200ppm |
|---|---|---|---|
| Resolution: | 20ppb | Sensitivity: | >3 MV/ppm At 100 Ppm |
| Response Time (T90) *: | ≤5 S | ||
| Highlight: | Long Life Photoionization sensor,C1P-5022-403 Photoionization Sensor,Strong Adaptability Photoionization sensor |
||

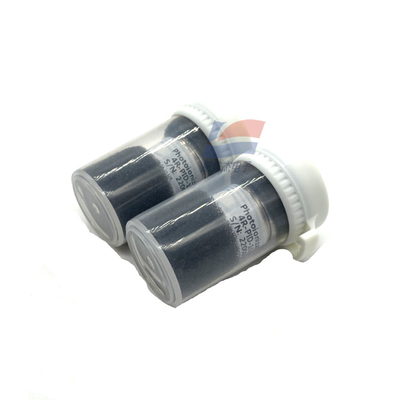

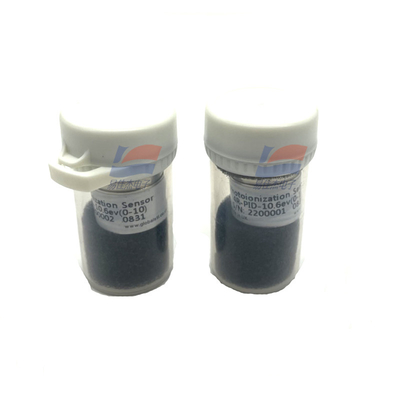

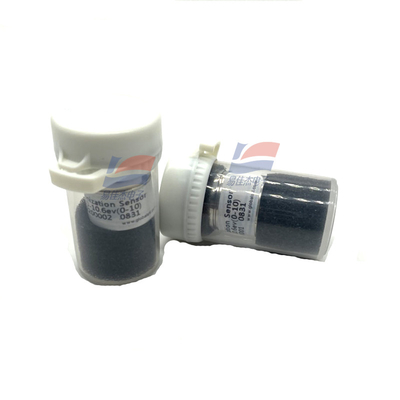

4R-PID 4RPID C1P-5022-403 It has long life, high performance, strong long-term stability and suitable environment Strong adaptability and other characteristics
Electrical parameters
The power supply voltage is 3.3~5.0V
Power consumption 80~180mW
Output current: 30mA typical
Certification: Intrinsically safe; IECEx Ex ia IIC T4；
ATEX Ex ia II 1G -20℃ < Ta < 55℃
Mechanical parameters
Weight: Approx. 16g
Housing material: Stainless steel
Size: φ20.2×16.5(Pin height 4.5mm)
Environmental parameters
The operating temperature range is -20°C~55°C
Operating humidity range 0~95%RH (non-condensing)
Temperature Influence ≤±20% (without compensation)
Humidity effect ≤±20% (0~75%RH range, no compensation)
| Body lifespan | 5 years (without UV lamp and detector) |
| The life of the UV lamp is | >10000h |
| Warranty | 18 months warranty for UV lamp, The sensor itself is guaranteed for 18 months |
