Product Details:
|
| Analog Output Current (at 100a): | 100ma | Turn Ratio: | 1/1000 |
|---|---|---|---|
| Accuracy (25℃): | Better Than ±0.5%in | Supply Voltage: | ±12~15vdc (±5%) |
| Highlight: | Servo Drivers Closed Loop Current Sensor,CSNF161-101 Closed Loop Current Sensor,CSNF161 Closed Loop Current Sensor |
||
Product Description:

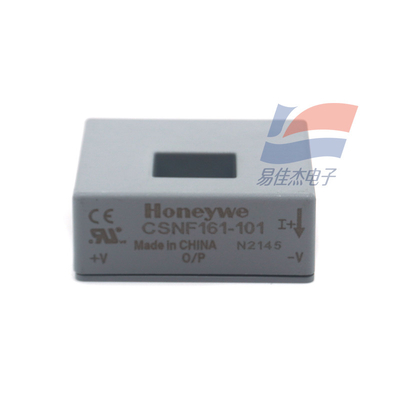

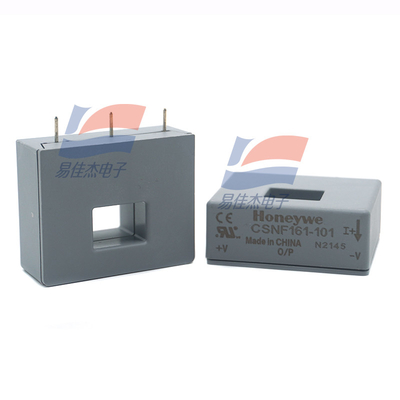

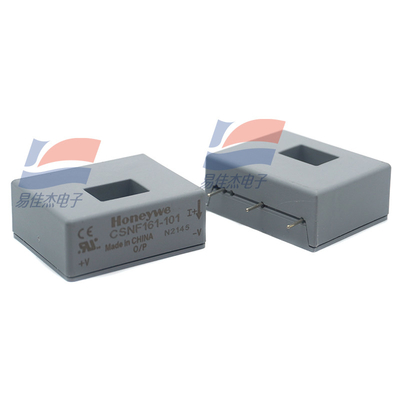

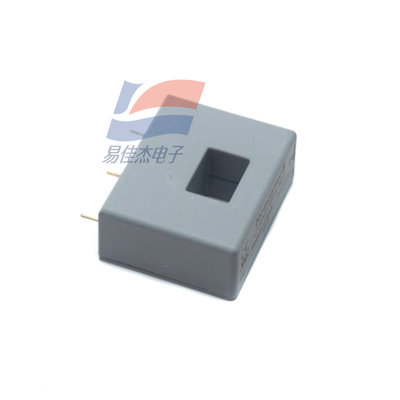

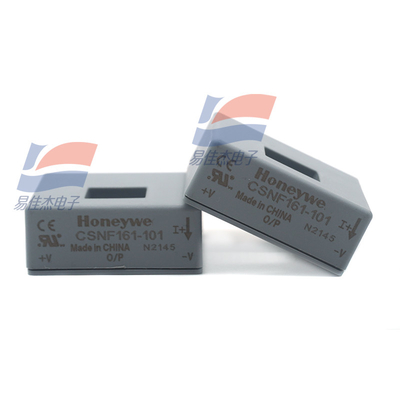

CSNF161 CSNF161-101 100A Closed Loop Current Sensor For Servo Drivers
Features:
Step 1 Describe
csnf161 closed loop current sensor based on magnetic compensation principle. Primary/secondary side electricity
The electrical insulation between the circuits can measure DC, AC and pulse current.
2. Electrical parameters
Rated current (in) : 100a.t rms (rated)
Measuring range: 0~±150a.t (dc~ac peak)
Measuring resistance (at 70 ° C) : rm min rm max
with±15v, at±100 a.tmax: 30ω 80ω
Analog output current (at 100a) : 100ma
Turn ratio: 1/1000
Accuracy (25℃) : better than ±0.5%in
Supply voltage: ±12~15vdc (±5%)
Original secondary electrical insulation: 3kvrms/50hz/1 min
Specifications:
| Rated current (in) | 100a.t rms (rated) |
| Measuring range | 0~±150a.t (dc~ac peak) |
| Measuring resistance (at 70 ° C) | rm min rm max |
| with±15v, at±100 a.tmax | 30ω 80ω |
