Product Details:
|
| Part Number: | CLL-6112-300 | Gas Detected: | Most Combustible Gases And Vapors |
|---|---|---|---|
| Nominal Range: | 0-100%LEL | Sensitivity Range: | 228 MV/%CH4 |
| T90 Response Time: | < 20 Seconds (methane) | ||
| Highlight: | 2.3V LEL Sensor,100%LEL Combustible Gas Sensor,2.3V LEL Combustible Gas Sensor |
||

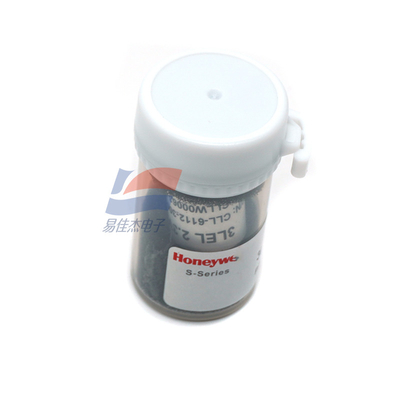

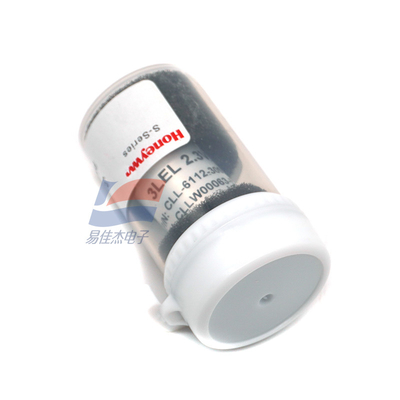

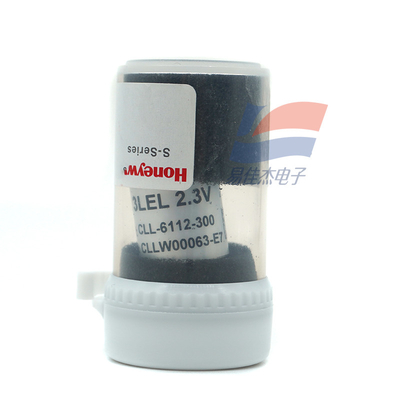

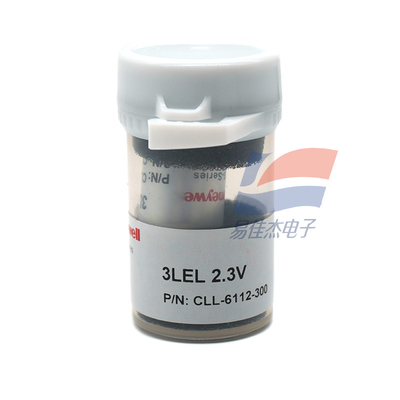

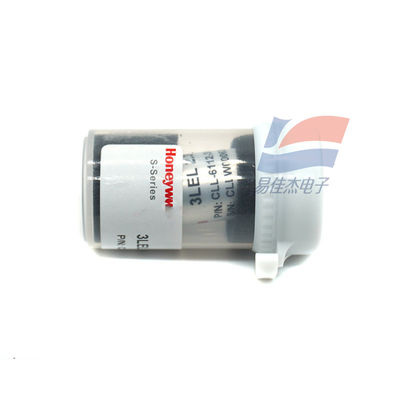

3LEL 3R CLL-6112-300 0 – 100%LEL Combustible Gas Sensor 2.3V LEL Sensor
Operation Conditions:
Temperature Range -20oC to 50oC
Operating Humidity 15-90%RH non-condensing
Operating Voltage 2.3V D.C.
Operating Current 110±10 mA
Storage no Si,Pb, Sn and S etc.vapors allowed
Enhanced Features:
Excellent shock resistance
Excellent high concentration flush resistance
Excellent long term stability
Excellent H2S poison resistance
Excellent HMDS poison resistance
| Weight | 20 g (approx) |
| Orientation Sensitivity | None |
| Warranty Period | 12 months |
