Product Details:
|
| Technology: | Electrochemical | Measurement Range: | 0-25% Vol. O2 |
|---|---|---|---|
| Maximum Overload: | 30% Vol. O2 | Output Signal*: | 0.41 ± 0.05 MA In Air |
| Response Time (T95)*: | <20 Seconds | ||
| Highlight: | 5FO Oxygen Gas Sensor |
||

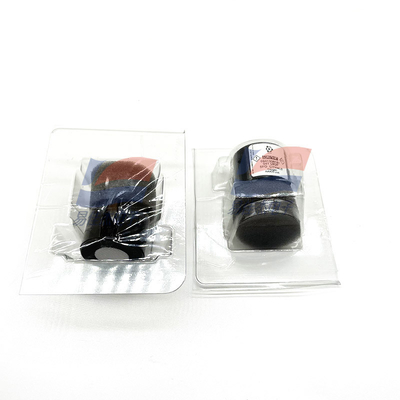

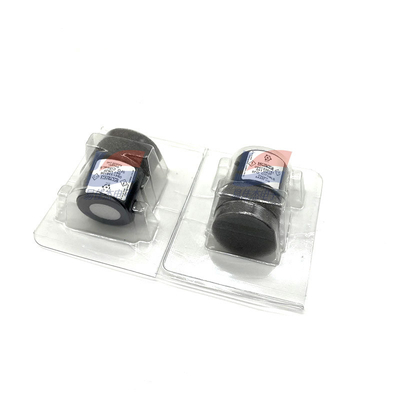

5FO Oxygen (O2) Gas Sensor Part Number: AAA32-400 Reliably meets stated life
Key Features and Benefits"
• Reliably meets stated life
• Superior environmental performance
* Specifications are valid at 20°C, 50% RH and
1013 mBar, using City Technology recommended
circuitry. Performance characteristics outline the
performance of sensors supplied within the first
3 months. Output signal can drift below the lower
limit over time.
| Maximum Load Resistor | 100 Ω |
| Weight | 44 g |
| Operating Temperature Range | -20°C to +45°C |
| Recommended Storage Temp | 0°C to 20°C |
| Temperature Coefficient | 0.2% signal/°C |
| Operating Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | <0.02% signal/mbar |
| Operating Humidity Range | 0 to 99%rH non-condensing |
