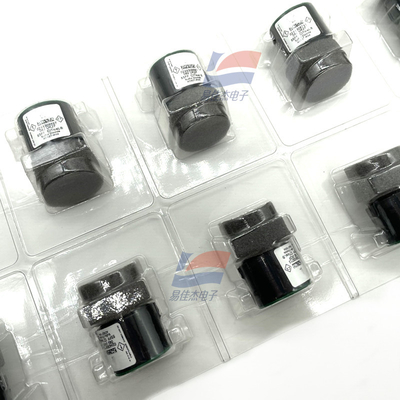

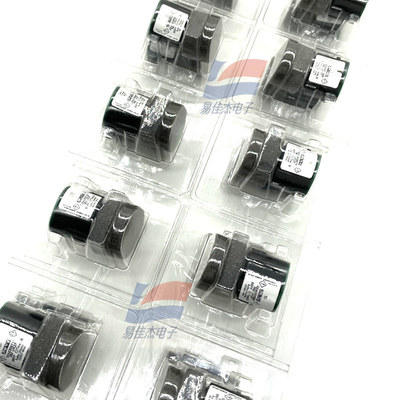

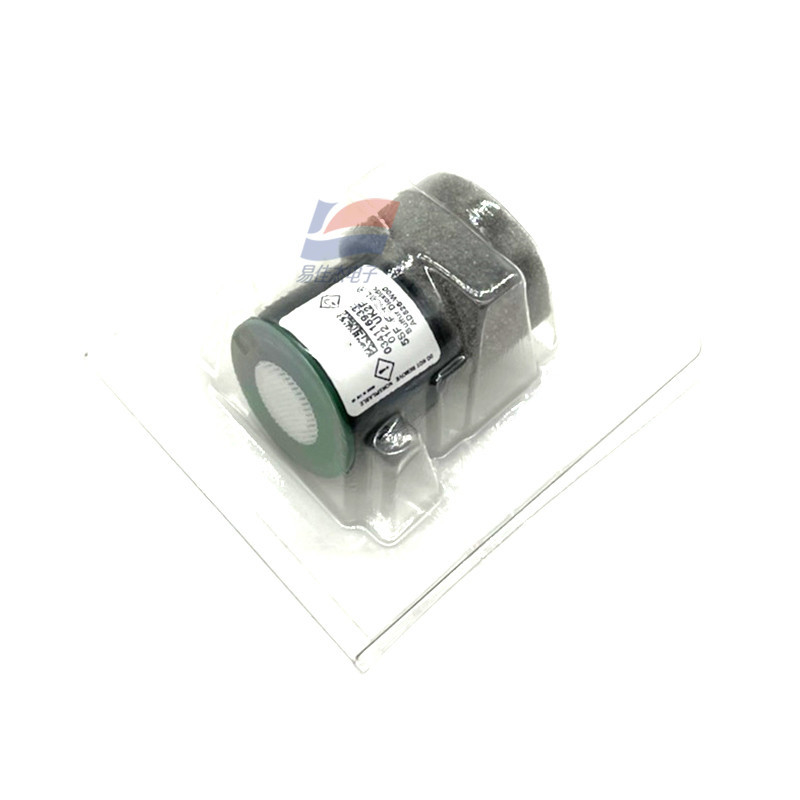

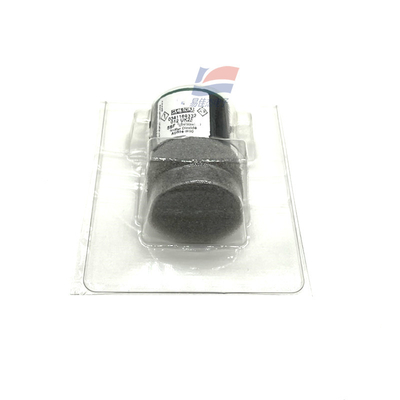

5SF Sulphur Dioxide gas sensor For gas analyzers

5SF Sulphur Dioxide gas sensor For gas analyzers
5SF Sulphur Dioxide gas sensor For gas analyzers 5SF Sulphur Dioxide gas sensor For gas analyzers 5SF Sulphur Dioxide gas sensor For gas analyzers 5SF Sulphur Dioxide gas sensor For gas analyzers

Large Image :  5SF Sulphur Dioxide gas sensor For gas analyzers

Product Details:
Model Number: 5SF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

5SF Sulphur Dioxide gas sensor For gas analyzers

Description
Nominal Range: 0-2000ppm Maximum Overload: 5000ppm
Expected Operating Life: Two Years In Air Output Signal: 0.10 ± 0.02μA/ppm
Resolution: 1ppm Temperature Range: -20°C To +50°C
Highlight:

5SF Sulphur Dioxide gas sensor

5SF Sulphur Dioxide gas sensor For gas analyzers



Every effort has been made to ensure the accuracy of this document at the time of printing. In accordance with the company’s policy of continued product improvement
City Technology Limited reserves the right to make product changes without notice. No liability is accepted for any consequential losses, injury or damage resulting
from the use of this document or from any omissions or errors herein. The data is given for guidance only. It does not constitute a specification or an offer for
sale. The products are always subject to a programme of improvement and testing which may result in some changes in the characteristics quoted. As the products
may be used by the client in circumstances beyond the knowledge and control of City Technology Limited, we cannot give any warranty as to the relevance of
these particulars to an application. It is the clients’ responsibility to carry out the necessary tests to determine the usefulness of the products and to ensure their
safety of operation in a particular application.
Performance characteristics on this data sheet outline the performance of newly supplied sensors. Output signal can drift below the lower limit over time.



T90 Response Time <30 seconds
Relative Humidity Range 15 to 90% non-condensing
Typical Baseline Range (pure air) 0 ± 2ppm equivalent
Maximum Zero Shift (+20°C to +40°C) 5ppm equivalent
Long Term Output Drift <2% signal loss/month
Bias Voltage Not required
Repeatability Repeatability
Output Linearity Linear



5SF Sulphur Dioxide gas sensor For gas analyzers 0
