Product Details:
|
| Technology: | Electrochemical | Measurement Range: | 0-25% Vol. O2 |
|---|---|---|---|
| Maximum Overload: | 30% Vol. O2 | Output Signal: | 80 - 130 MA In Air |
| T90 Response Time*: | <15 Seconds | T97 Response Time*: | <35 Seconds |
| Highlight: | 5OXLL Oxygen Gas Sensor,Emissions Oxygen Gas Sensor |
||

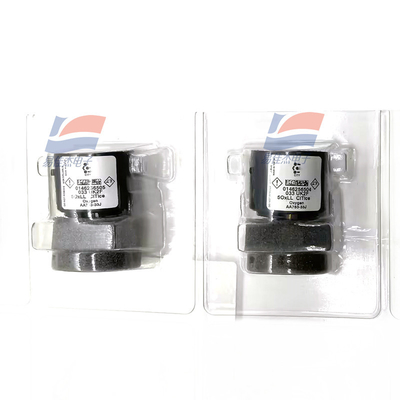

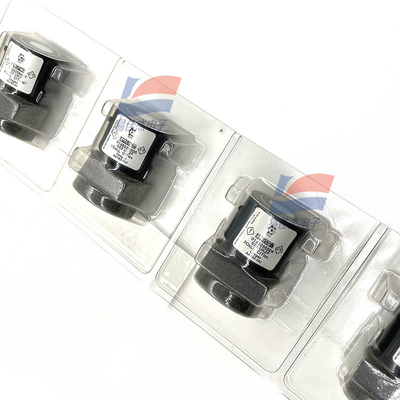

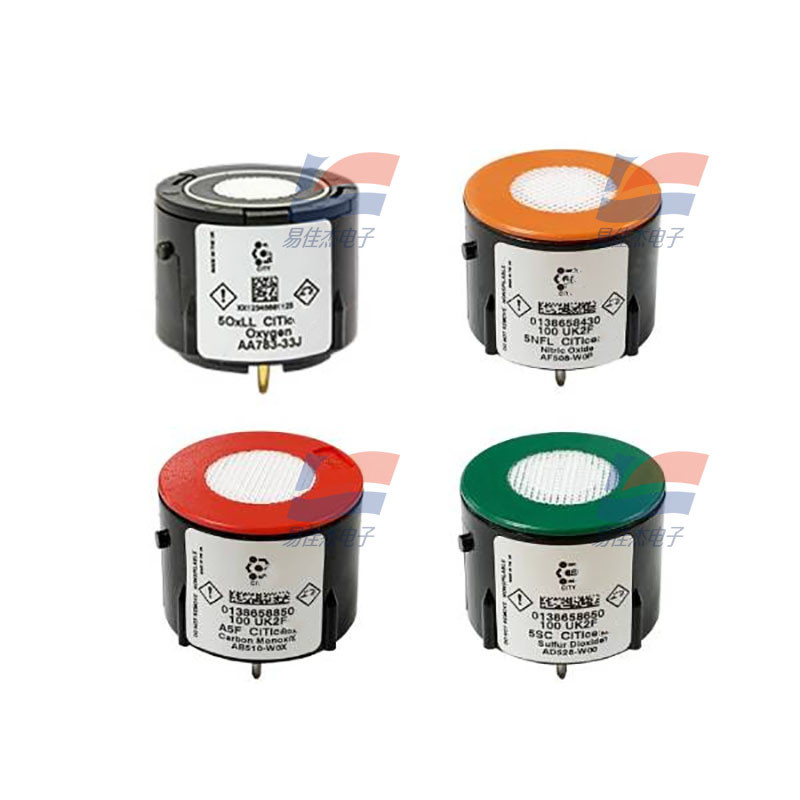

5OXLL Oxygen (O2) Gas Sensor for Emissions Part Number: AA783-33J
Key Features and Benefits:
• Long Life
• Improved field reliably
• Superior environmental performance
• Enhanced response time in extreme conditions
Document Purpose:
The purpose of this document is to present the performance specification of the 5OxLL longlife oxygen sensor.
This document should be used in conjunction with the 4OxLL / 5OxLL (Emissions) Characterisation Note, the 4OxLL
/ 5OxLL Operating Principles (OP19) and the Product Safety Datasheet (PSDS 5).
The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date
of sensor manufacture. For guidance on sensor performance outside of these limits, please refer to the
4OxLL / 5OXLL (Emissions) Characterisation Note.
Output signal can drift below the lower limit over time. For guidance on the safe use of the sensor, please refer to
the Operating Principles OP19.
| Bias Voltage | -600 ± 10 mV |
| Power Rating at 20.9%O2 | 0.5 mW |
| Casing Material | ABS / NORYL |
| Weight | 14 ± 0.2 g |
| Orientation Sensitivity | <0.2%vol. O2 equivalent |
| Operating Temperature Range | -40°C to 60°C |
| Recommended Storage Temp | 0°C to 20°C in original packaging |
| Operating Pressure Range | Atmospheric ± 20% |
