Product Details:
|
| Nominal Range: | 0-2000ppm | Maximum Overload: | 5000ppm |
|---|---|---|---|
| Internal Filter: | To Remove Effects Of H2S & HCl | Expected Operating Life: | Two Years In Air |
| Output Signal: | 0.10 ± 0.02μA/ppm | Resolution: | 1ppm |
| Highlight: | 5SFF Sulphur Dioxide gas sensor,Sulphur Dioxide gas sensor |
||

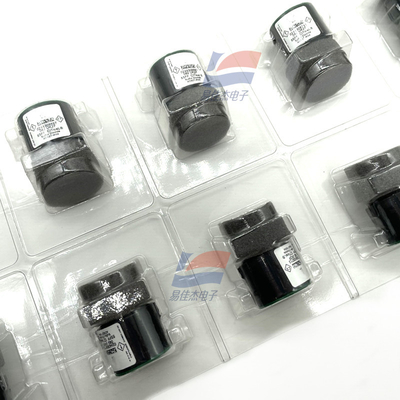

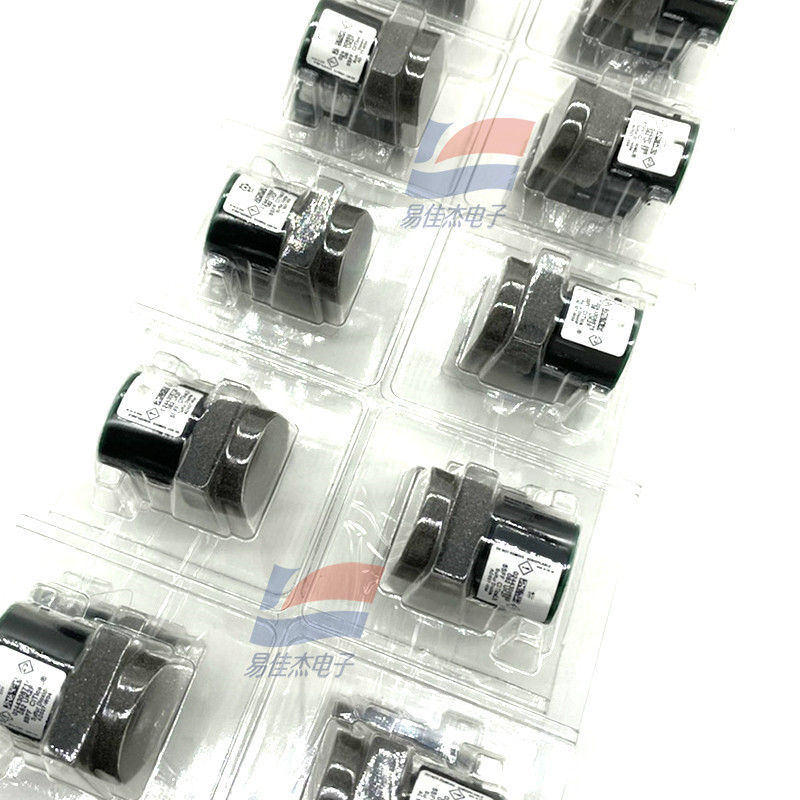

5SFF Sulphur Dioxide gas sensor For gas analyzers
CiTiceLs may exhibit a response to certain gases in a sample other than the target gas. The table below shows the
typical response of 5SF/F sensors to a number of common cross-interfering gases. The figures are expressed as a
percentage of the primary sensitivity (i.e. sulphur dioxide = 100%).
| Temperature Range | Temperature Range |
| Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | ≈ 0.08 % signal/mBa |
| T90 Response Time | <40 seconds |
| Relative Humidity Range | 15 to 90% non-condensing |
| Long Term Output Drift | <2% signal loss/month |
| Bias Voltage | Not required |
| Repeatability | 1% of signal |
