Product Details:
|
| Measuring Range: | 10-300ppm | Sensitivity (resistance Ratio): | 0.5-0.65 |
|---|---|---|---|
| Heater Voltage: | 5V±0.2V(AC/DC) | Circuit Voltage: | 24V(AC/DC) |
| Highlight: | Cold Storage Halogen Gas Sensor,YJJ Halogen Gas Sensor,Cold Storage Gas Sensor |
||
Product Description:

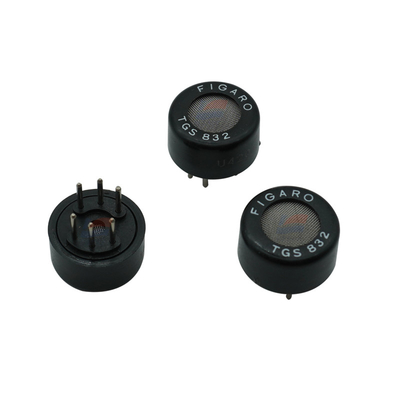

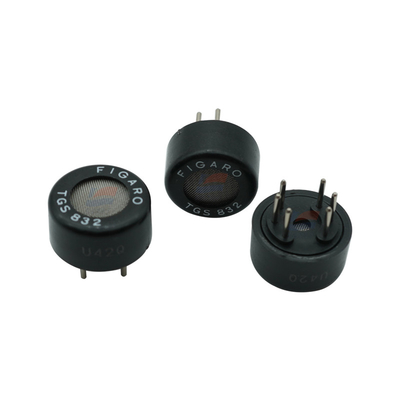

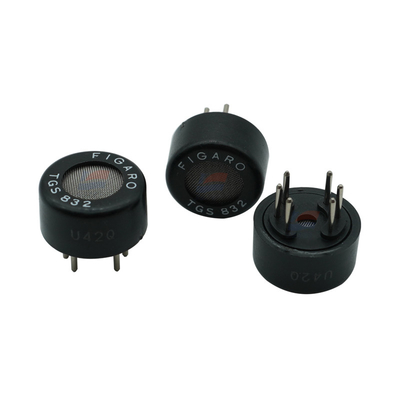

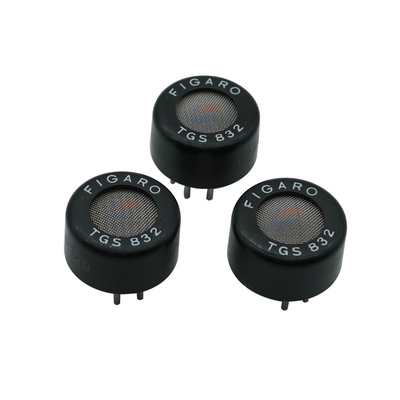

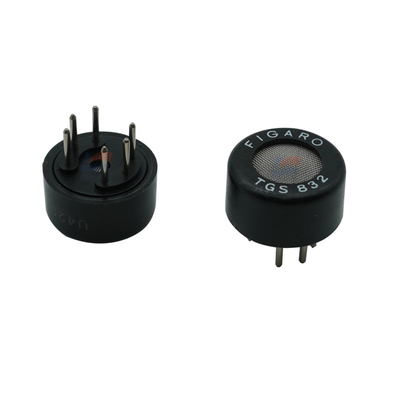

TGS832-A00 Halogen Gas Sensor For Freon Leak Detection In Cold Storage
Features:
First, halogen gas sensor TGS832-A00 Main parameters:
Measuring range: 10-300ppm
Sensitivity (resistance ratio) : 0.5-0.65
Heater voltage: 5V±0.2V(AC/DC)
Circuit voltage: 24V(AC/DC)
Two, halogen gas sensor TGS832-A00 Main features:
High sensitivity to R-134a;
Long life, low power consumption;
Later circuit is simple;
Ceramic base, strong environmental resistance
Three, halogen gas sensor TGS832-A00 Typical application:
Halogen monitor. Freon leak detection in cold storage
Specifications:
| Measurement range | 10-300ppm |
| Sensitivity (resistance ratio) | 0.5-0.65 |
| Heater voltage | 5V±0.2V(DC/AC) |
| Circuit voltage | 24V(AC/DC) |
