Product Details:
|
| Sensitivity: | 275 To 475 | Response Time: | < 40 |
|---|---|---|---|
| Zero Current: | -80 To +80 | Noise*: | 5 |
| Range: | 100 | Linearity: | 0 To -2 |
| Highlight: | High Humidity Sulfur dioxide sensor |
||

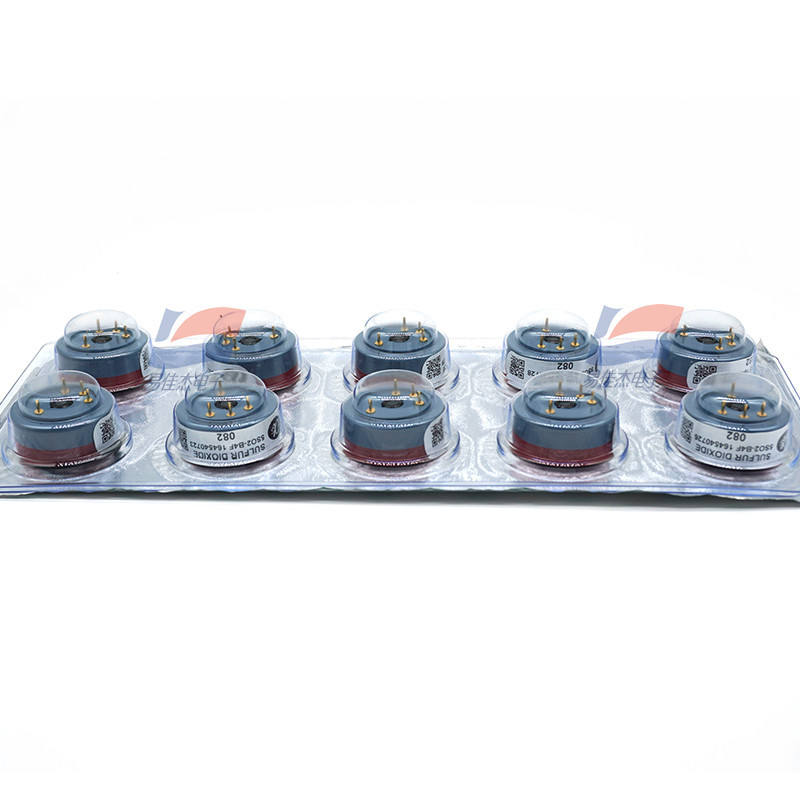

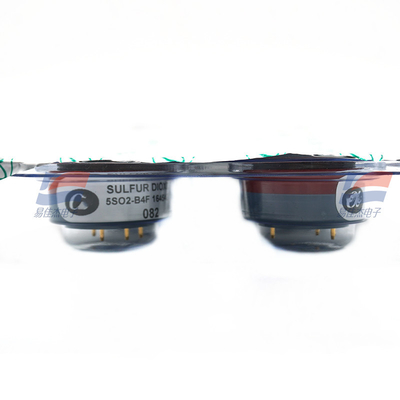

5SO2-B4F Sulfur dioxide sensor 4-Electrode (High Humidity)
LIFETIME :
Zero drift ppb equivalent change/year in lab air < ±20
Sensitivity drift % change/year in lab air, monthly test < ±15
Operating life months until 50% original signal (24 month warranted) > 36
ENVIRONMENTAL :
Sensitivity @ -20°C (% output @ -20°C/output @ 20°C) @ 2ppm SO2 70 to 90
Sensitivity @ 50°C (% output @ 50°C/output @ 20°C) @ 2ppm SO2 90 to 110
Zero @ -20°C nA change from 20°C 0 to -10
Zero @ 50°C nA change from 20°C 10 to 30
| Temperature range | -30 to 50 °C |
| Pressure range | 80 to 120 kPa |
| Humidity range | 30 to 95 % rh continuous (see note below) |
| Storage period | 6 months @ 3 to 20°C (stored in sealed pot) |
| Load Resistor | 33 to 100 (ISB circuit is recommended) |
| Weight | < 13 g |
