Product Details:
|
| Detection Range: | 30-3000ppm | Sensitivity (resistance Ratio): | 0.25-0.60 |
|---|---|---|---|
| Loop Voltage: | 5.0 ± 0.2V DC | Heater Current: | 56 ± 5mA |
| Highlight: | Sensitivity Hydrogen H2 Gas Sensor,TGS2616-C00 Hydrogen H2 Gas Sensor |
||
Product Description:

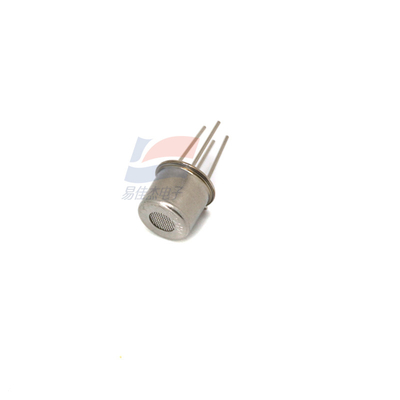

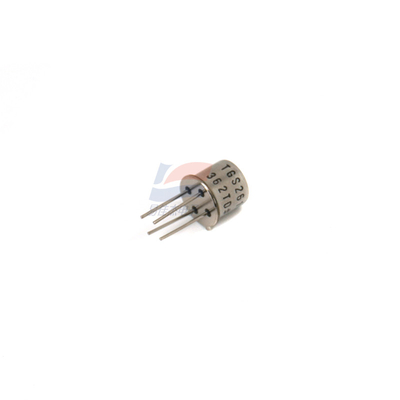

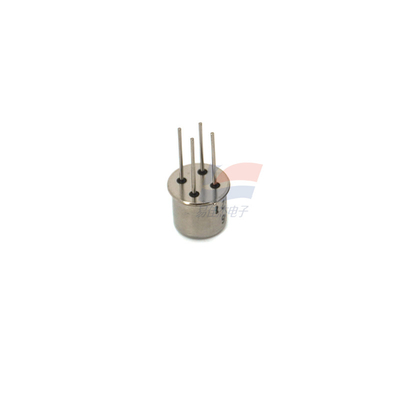

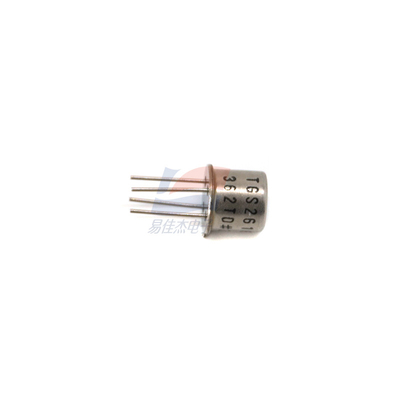

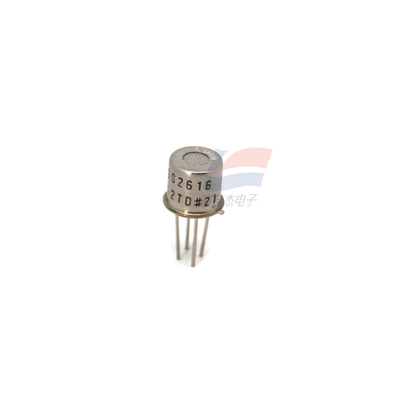

TGS2616-C00 Hydrogen H2 Gas Sensor For Portable Gas Detectors
Features:
TGS2616-C00 is used to detect hydrogen gas
Detection range :30-3000ppm
Sensitivity (resistance ratio):0.25-0.60
Loop voltage :5.0 ± 0.2V DC
Heater power consumption: 125mW
Heater current: 56 ± 5mA
Heater resistance: approx. 59Ω (room temperature)
TGS2616-C00 Gas sensor for detecting hydrogen Main features:
· High selectivity for hydrogen
· Small size and low power consumption
· Simple application circuit
TGS2616-C00 Gas sensor for detecting hydrogen Typical applications:
· Hydrogen detection in steel plant
· Portable gas detector
· Leak detection of gas appliances
· Hydrogen leak detection of fuel cell systems
Specifications:
| Measurement range | 30-3000ppm |
| Sensitivity (resistance ratio) | 0.25-0.60 |
| Heater voltage | 125mW |
| Circuit voltage | 5.0±0.1V |
