Product Details:
|
| Output Current: | 0.7-1.4nA/ppm | Response Schedule: | < 60S |
|---|---|---|---|
| Working Temperature: | 0℃ ~ +50℃ | Working Humidity: | 5-99%RH |
| Highlight: | Risk Control Carbon Monoxide Sensor,Indoor Parking Lots CO Sensor,Risk Control CO Sensor |
||
Product Description:

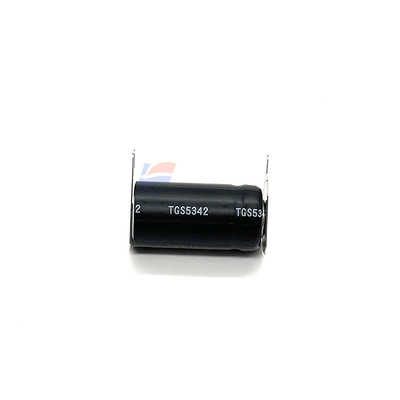

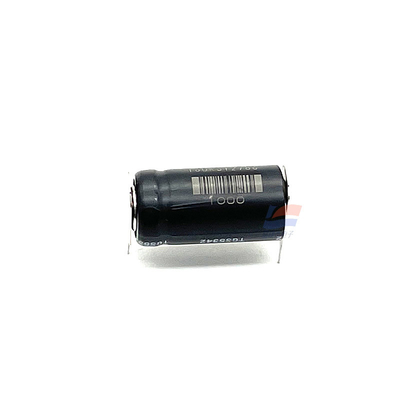

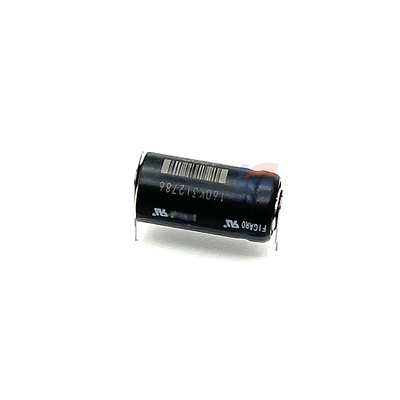

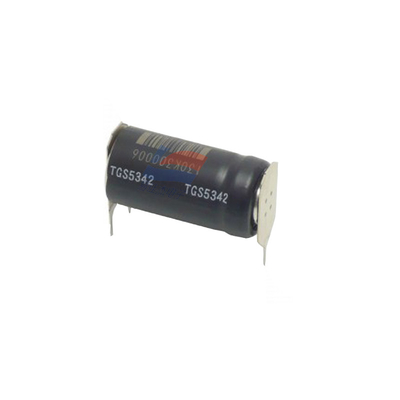

TGS5342-G03 Carbon Monoxide (CO) Sensor Is used For Risk Control In Indoor Parking Lots
Features:
First, carbon monoxide (CO) sensor TGS5342-G03 Main parameters:
1) Carbon monoxide detection range: 0-10000ppm
2) Output current: 0.7-1.4nA/ppm
3) Response schedule: < 60S
4) Working temperature: 0℃ ~ +50℃ (continuous working); -5℃ ~ +55℃ (intermittent operation)
5) Working humidity: 5-99%RH
Second, carbon monoxide (CO) sensor TGS5342-G03 Features:
1) Long life, electrochemical principle;
2) Low sensitivity to ethanol;
3) Reduce the influence of various interfering gases;
4) The selectivity and repeatability of carbon monoxide gas is very good;
5) The sensor signal output has a linear relationship with the concentration of carbon monoxide gas;
Typical application of carbon monoxide (CO) sensor TGS5342-G03:
Carbon monoxide detector, indoor parking with risk control system.
Specifications:
| Measurement range | 0-10000ppm |
| Output current | 0.7-1.4nA/ppm |
| Response schedule | < 60S |
| Long life | 7~10 years; |
