Product Details:
|
| Air Detection Sensor Measuring Range: | 1-30ppm | Detection Terminal Voltage: | Vc = Max3VDC |
|---|---|---|---|
| Sensitivity (resistance Ratio): | 0--0.6 | Ambient Temperature: | -10 ~ 50℃ |
| Highlight: | YJJ TGS8100 Air Quality Sensor,Indoor Air Quality Sensor,Air Quality Sensor |
||
Product Description:

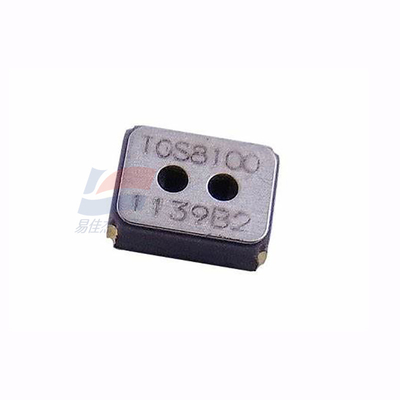

TGS8100 Air Quality Sensor Is Used For Indoor Air Quality Detection, Such As Air Fresheners
Features:
First, air quality sensor TGS8100 main parameters:
Air detection sensor measuring range: 1-30ppm
Detection terminal voltage: Vc = Max3VDC lasts 2ms,0VDC lasts 998ms
Circuit heating terminal voltage: Vh = 1.8V DC±2%
Sensitivity (resistance ratio) : 0--0.6 (10ppmH2 resistance/resistance in air)
Ambient temperature: -10 ~ 50℃
Two, air quality sensor TGS8100 main features:
Low power consumption: Low power consumption ----15mW
Small size: 3.2*2.5*0.99 (mm)
Fast response speed, high sensitivity to polluting gases, long life, low price, simple application circuit, can be used for air quality detection and indoor air quality detection.
Air purifier, etc.
Specifications:
| Measurement range | 1-30ppm |
| Output current | 0.7-1.4nA/ppm |
| Response schedule | < 60S |
| Long life | 7~10 years; |
