Product Details:
|
| Nominal Range: | 0 ~ 10 Ppm | Maximum Overload: | 100 Ppm |
|---|---|---|---|
| Sensitivity (20°C): | 0.3 ± 0.1 μA/ppm | Response Time (T90): | ≤ 35 S |
| Zero Signal (20°C): | < ±100 NA | Baseline Shift (-40°C ~ 50°C): | < 200 Ppb (After Compensation) |
| Highlight: | Accurate Carbon Monoxide Electrochemical Sensor,Fast Carbon Monoxide Electrochemical Sensor,Four-electrode Carbon Monoxide Electrochemical Sensor |
||

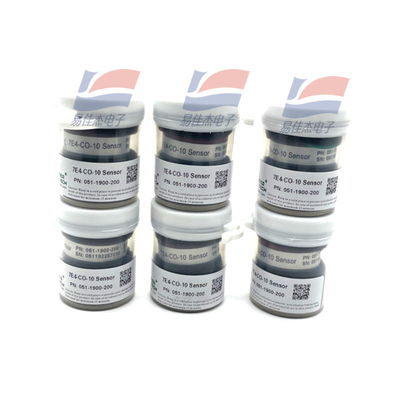

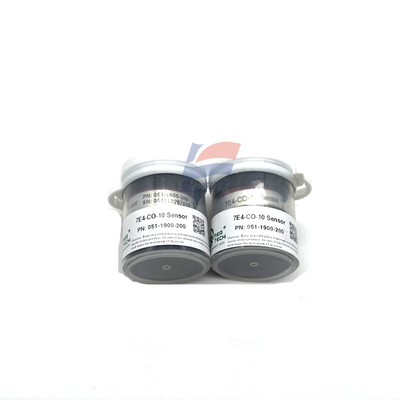

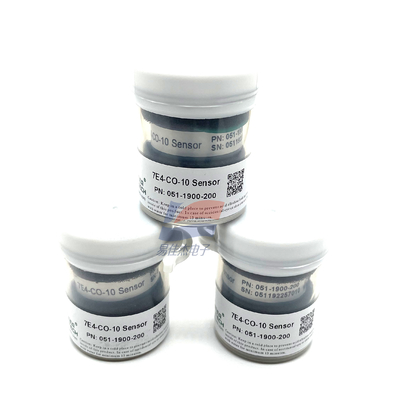

7E4-CO-10 Four-electrode carbon monoxide electrochemical sensor (Part No. : 051-1900-200)
Description:
This 4-electrode sensor is designed for air quality monitoring to mea- sure the low-concentration CO gas with ultra-high resolutions. The de- sign optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect CO variations at parts per billion (ppb) levels.
Installation:
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.
| Temperature Range | -40°C ~ 50°C |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
| Long Time Output Drift | < 10% signal/year |
| Recommended Storage Temp | 10°C ~ 30°C |
| Expected Operating Life | 3 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 24 months |
