Product Details:
|
| Nominal Range: | 0 ~ 10 Ppm | Maximum Overload: | 50 Ppm |
|---|---|---|---|
| Sensitivity (20°C): | 0.20 ± 0.05 μA/ppm | Response Time (T90): | ≤ 120 S |
| Zero Signal (20°C): | < ±0.1 μA | Baseline Shift (-30°C ~ 50°C): | < 1 Ppm |
| Highlight: | FOUR ELECTRODE NH3 Gas SENSOR |
||

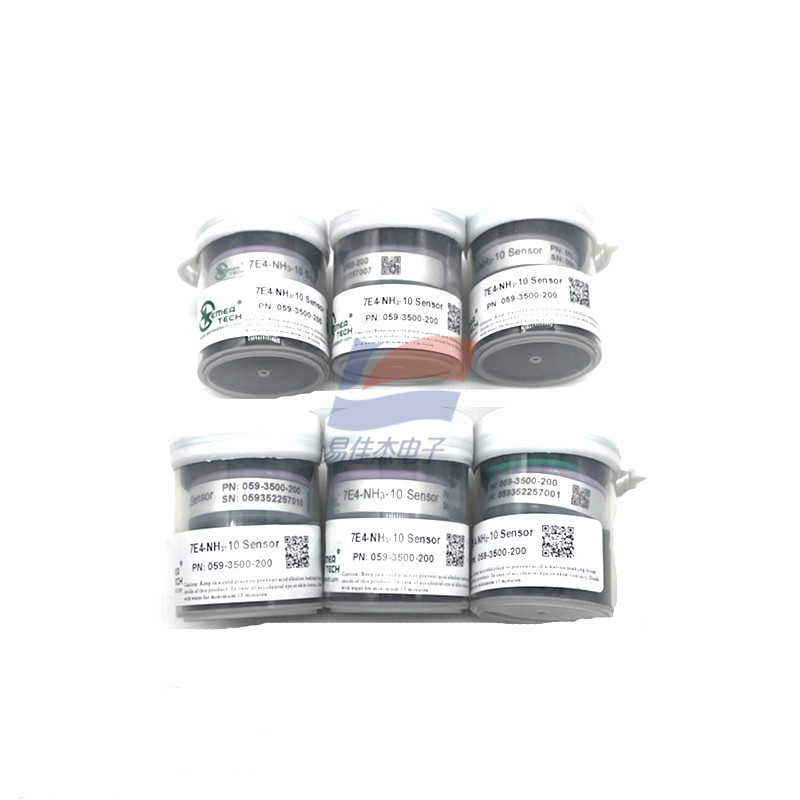

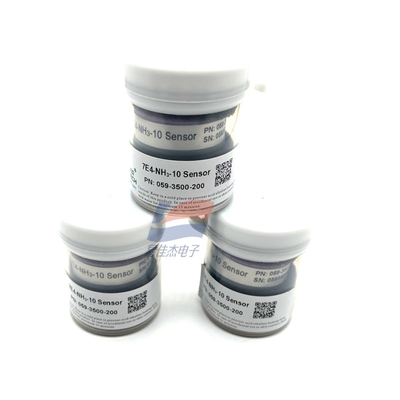

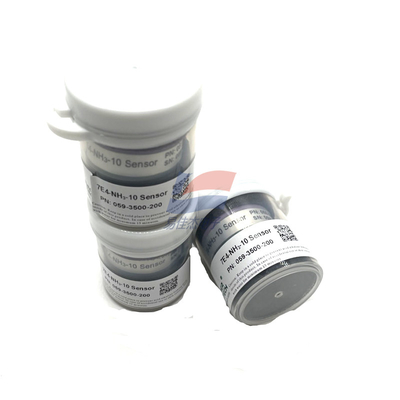

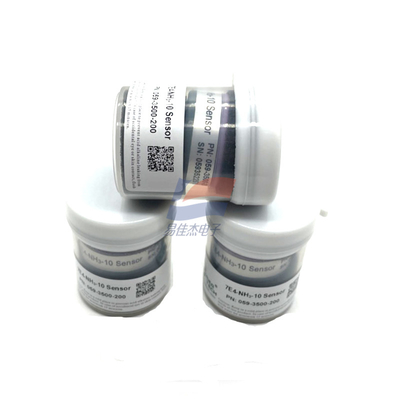

7E4-NH3-10 PN: 059-3500-200 FOUR ELECTRODE NH3 Gas SENSOR
Description:
This 4-electrode sensor is designed for air quality monitoring to mea- sure the low-concentration NH3 gas with ultra-high resolutions. The de- sign optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect NH3 variations at parts per billion (ppb) levels.
Installation:
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.
| Temperature Range | -30°C ~ 50°C |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
| Long Time Output Drift | < 10% signal/year |
| Recommended Storage Temp | 10°C ~ 30°C |
| Expected Operating Life | 2 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 24 months |
