Product Details:
|
| Measuring Range: | 0-100 Ppm | Maximum Load: | 500 Ppm |
|---|---|---|---|
| Sensitivity: | 0.8 ± 0.2uAppm | Baseline (20°C): | < +0.4 μA |
| Highlight: | Hydrogen Sulfide H2S Gas Sensor,Electrochemical Hydrogen Sulfide H2S Gas Sensor |
||
Product Description:

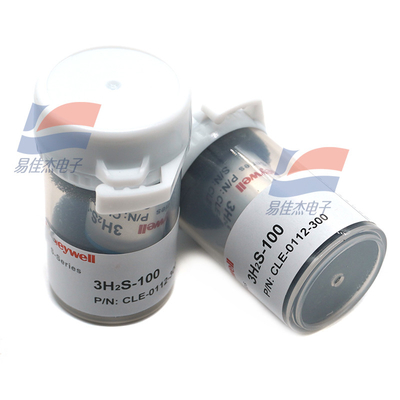

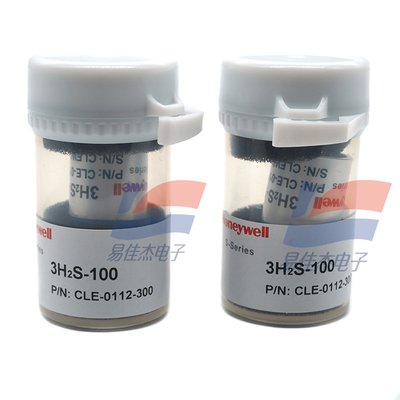

3H2S-100 CLE-0112-300 0-100PPM Electrochemical Hydrogen Sulfide H2S Gas Sensor
Features:
Product model CLE-0112-300
Measuring range 0-100 ppm
Maximum load 500 ppm
Sensitivity 0.8 ± 0.2uAppm
Baseline (20°C) : < +0.4 μA
Baseline drift: equivalent to 0 to 0.2 ppm H2S
Resolution 1 ppm
Response time (T90) ≤30 seconds
Linearity: <2%
Operating conditions -20°C to 509C
Operating temperature 15~90%RH(non-condensing)
Operating humidity 90 to 110 kPa
Working pressure 0 mV
Storage time 6 months (in special box)
Storage temperature 0° C to 209C
Service life 2 years in the air
The warranty period is 12,124,136 months after delivery
Specifications:
| Measurement range | 0-100 ppm |
| Maximum load | 500 ppm |
| Baseline (20°C) | < +0.4 μA |
| Sensitivity | 0.8 ± 0.2uAppm |
