0-50 ppm H2S Measurement Range Three-electrode Electrochemical Hydrogen Sulfide H2S Gas Sensor with Accurate Detection

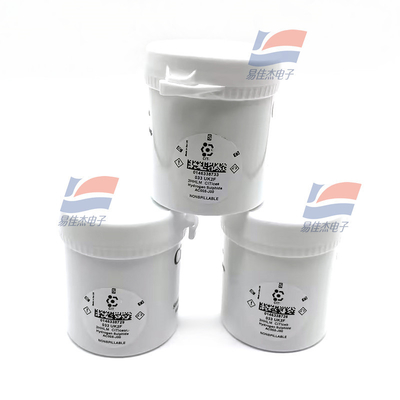

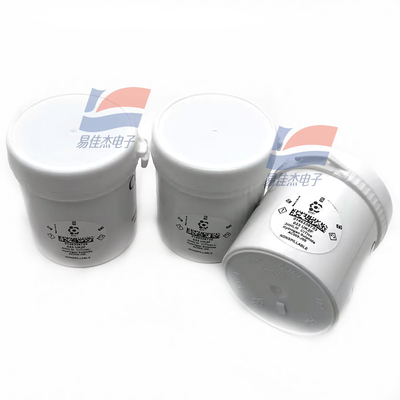

Large Image : 0-50 ppm H2S Measurement Range Three-electrode Electrochemical Hydrogen Sulfide H2S Gas Sensor with Accurate Detection

Product Details:

Place of Origin:	Britain
Brand Name:	CITY
Model Number:	3HHLM AC005-J00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	canning
Delivery Time:	3 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2200

Contact Now

0-50 ppm H2S Measurement Range Three-electrode Electrochemical Hydrogen Sulfide H2S Gas Sensor with Accurate Detection

Description

Measurement Range:

0-50 Ppm H2S

Maximum Overload:

500 Ppm H2S

Sensitivity:

1.70 ± 0.30 μA/ppm

Response Time (T90):

<30 Seconds

Highlight:

Accurate Detection H2S Gas Sensor

Three-electrode H2S Gas Sensor

0-50 ppm H2S Gas Sensor

Product Description:

3HHLM AC005-J00 Three-electrode Electrochemical Hydrogen Sulfide (H2S) Gas Sensor

Features:

MEASUREMENT

Operating Principle:3-electrode electrochemical

Measurement Range:0-50 ppm H2S

Maximum Overload:500 ppm H2S

Filter:None

Sensitivity:1.70 ± 0.30 μA/ppm

Response Time (T90):<30 Seconds

Baseline Offset (clean air):-0.2 to +0.4 ppm H2S equivalent

Maximum Zero Shift:0.1 ppm H2S equivalent

(+20°C to +40°C)

Resolution:0.1 ppm (when used with

Repeatability:1% of signal

Linearity:Linear

Specifications:

Measurement range	0-50 ppm H2S
Maximum load	500 ppm H2S
Baseline (20°C)	-0.2 to +0.4 ppm H2S equivalent
Sensitivity	0.8 ± 0.2uAppm

0-50 ppm H2S Measurement Range Three-electrode Electrochemical Hydrogen Sulfide H2S Gas Sensor with Accurate Detection 0
