Product Details:
|
| Nominal Range: | 0 ~ 10 Ppm | Maximum Overload: | 20 Ppm |
|---|---|---|---|
| Sensitivity (20℃): | 0.40 ± 0.20 μA/ppm | Response Time (T90): | ≤ 45 S |
| Zero Signal (20℃): | < ±500 NA | Baseline Shift (-20℃ ~ 50℃): | < 100 Ppb (After Compensation) |
| Highlight: | FOUR ELECTRODE NO SENSOR |
||

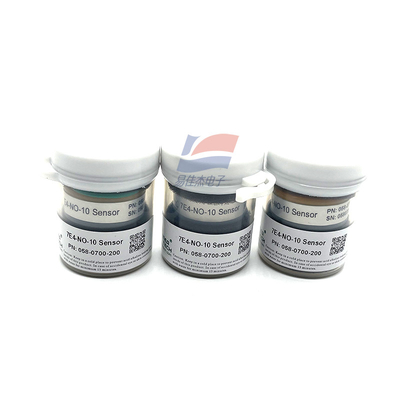

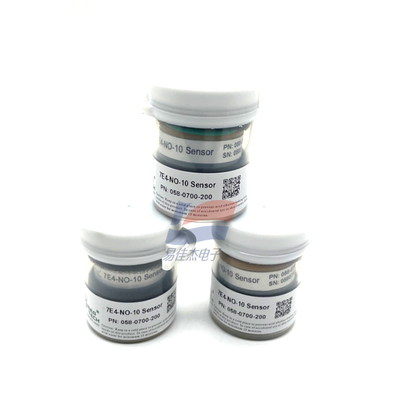

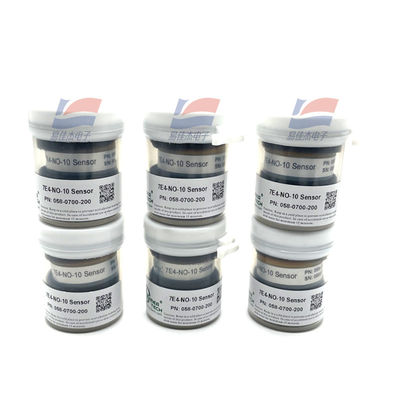

7E4-NO-10 (PN: 058-0700-200) FOUR ELECTRODE NO SENSOR The Design Optimizes The Sensor Sensitivity Accuracy And Long-Term Stability
Environmental:
| Temperature Range | -20℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Cross-Sensitivity Data:
| Gas | Concentration (ppm) | Output Signal (ppb NO equivalent) |
|---|---|---|
| Sulfur Dioxide | 5 | 54.7 |
| Ammonia | 20 | 0.0 |
| Hydrogen Sulfide | 5 | 0.0 |
| Carbon Monoxide | 5 | 0.0 |
| Nitrogen Dioxide | 5 | 92.7 |
| Hydrogen | 100 | 20.5 |
| Carbon Dioxide | 30,000 | 0.0 |
| Ozone | 0.5 | 0.0 |
| Chlorine | 5 | 43.0 |
Installation:
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.
Product Dimensions:
