Product Details:
|
| Range: | 0 To 50 Ppm | Load: | 100 Ppm |
|---|---|---|---|
| Sensitivity: | 0.45 ± 0.20 MA/ppm | Baseline: | (20℃) <± 0.1 Ma |
| Baseline Drift Is Equivalent To: | 0 To 0.3 Ppm | ||
| Highlight: | Leakage Monitoring Chlorine Gas Sensor,Chemical Pharmaceutical Plants Gas Sensor |
||
Product Description:

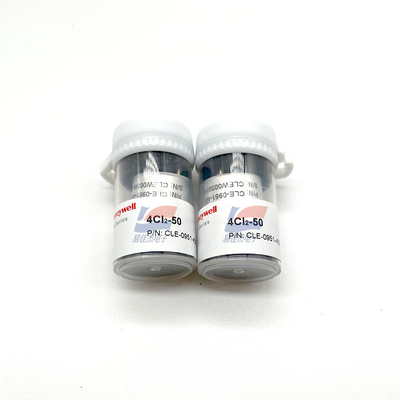

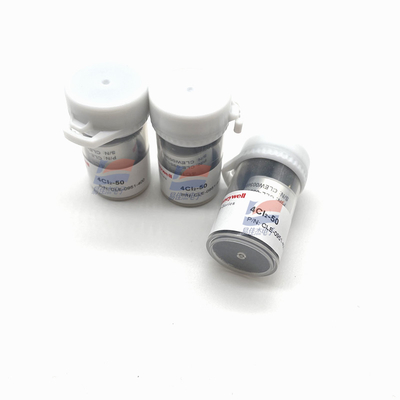

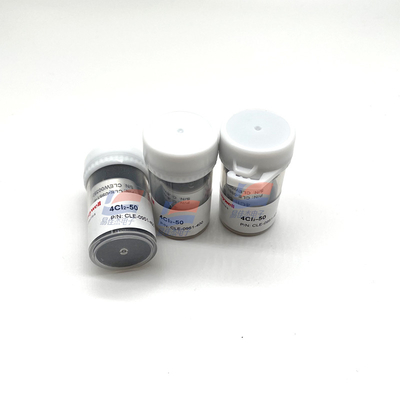

4CL2-50 CLE-0951-400 Electrochemical Chlorine Gas Sensor Used For Chlorine Leakage Monitoring In Chemical Pharmaceutical Plants And Other Places
Features:
Product model CLE-0951-400
Range 0 to 50 ppm
Load 100 ppm
Sensitivity 0.45 ± 0.20 mA/ppm
Baseline (20℃) <± 0.1 ma
Baseline drift is equivalent to 0 to 0.3 ppm
(-20 to 40 ℃)
Resolution 0.1ppm
Response time (T90) £30 seconds
linearity
Long-term stability <2% signal value/month
Working condition
Operating temperature -20 ℃ to 50 ℃
Operating humidity 15 to 90%RH (non-condensing)
Working pressure 90 to 110 kPa
Bias voltage 0 mV
Storage time 6 months (in the box)
Storage temperature 0℃ to 20℃
Service life 2 years in the air
12 months after delivery
Specifications:
| Range | 0 to 50 ppm |
| Load | 100 ppm |
| Bias voltage | 0 mV |
| Storage time | 6 months (in the box) |
