Product Details:
|
| Nominal Range: | 0 ~ 5 Ppm | Maximum Overload: | 20 Ppm |
|---|---|---|---|
| Sensitivity (20°C): | -0.45 ± 0.20 μA/ppm | Response Time (T90): | ≤ 60 S |
| Zero Signal (20°C): | < ±70 NA | Baseline Shift (-40°C ~ 50°C): | < 50 Ppb (After Compensation) |
| Resolution: | 10 Ppb | Linearity: | Linear Up To 5 Ppm |
| Highlight: | FOUR ELECTRODE O3 SENSOR,Four Electrode O3 Sensor |
||

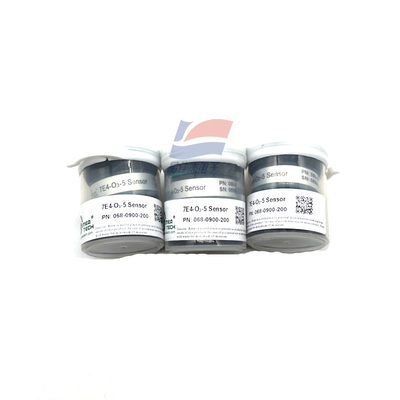

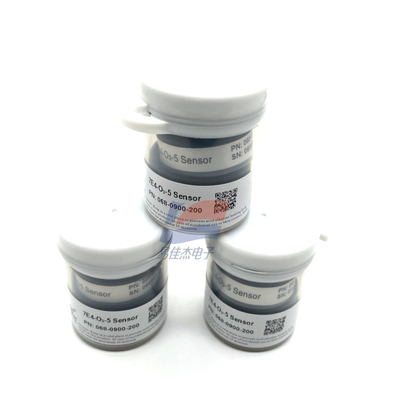

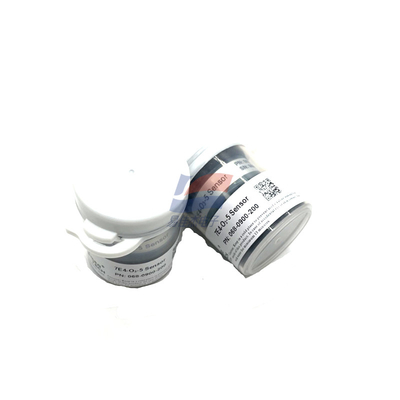

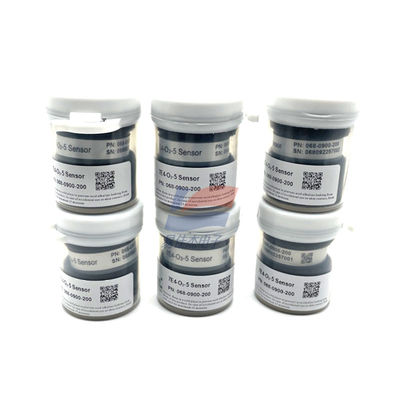

7E4-O3-5 (PN: 068-0900-200) FOUR ELECTRODE O3 SENSOR Product Is Used To Measure The Concentration Of Ozone Gas, Using Four Electrode Structure Design, Using Compensation Algorithm To Improve
Description:
This 4-electrode sensor is designed for air quality monitoring to mea- sure the low-concentration O3 gas with ultra-high resolutions. The de- sign optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect O3 variations at parts per billion (ppb) levels.
Environmental:
| Temperature Range | -40℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time:
| Long Time Output Drift | < 10% signal/year |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 3 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 24 months |
Intrinsic Safety Data:
| Max. Current at 20ppm O3 | < 0.2 mA |
| Max. O/C Voltage | 1.3 V |
| Max. S/C Current | < 1.0 A |
Installation:
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.
Product Dimensions:
