Product Details:
|
| Maximum Overload: | 100 Ppm | Sensitivity (20°C): | 2.25 ± 0.65 μA/ppm |
|---|---|---|---|
| 2.25 ± 0.65 μA/ppm: | ≤ 120 S | Zero Signal (20°C): | -0.2 ~ 2.5 μA |
| Baseline Shift (-20°C ~ 50°C): | < 2 Ppm | Resolution: | 0.05 Ppm |
| Highlight: | 20 ppm ELECTROCHEMICAL SENSOR,Gas Analyzers ELECTROCHEMICAL SENSOR,20 ppm ELECTROCHEMICAL SENSOR |
||

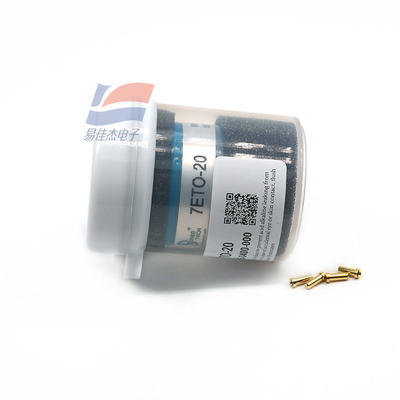

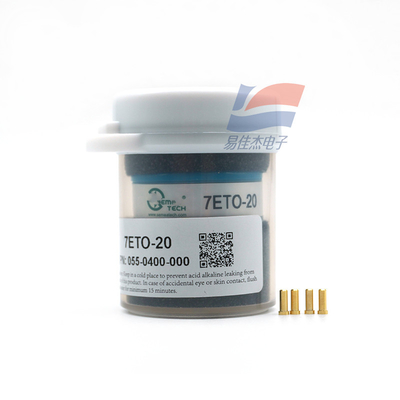

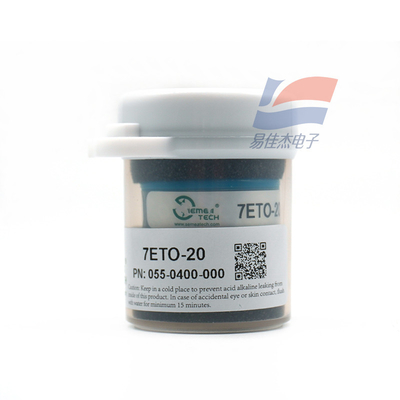

7ETO-20 (PN: 055-0400-000) ELECTROCHEMICAL SENSOR 0 ~ 20 ppm For Gas Analyzers
Product Description:
This sensor is designed for the measurement of Ethylene Oxide concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Ethylene Oxide sensors made by the other manufacturers.
Performance Characteristics:
| Nominal Range | 0 ~ 20 ppm |
| Maximum Overload | 100 ppm |
| Sensitivity (20℃) | 2.25 ± 0.65 μA/ppm |
| Response Time (T90) | ≤ 120 s |
| Zero Signal (20℃) | -0.2 ~ 2.5 μA |
| Baseline Shift (-20℃ ~ 50℃) | < 2 ppm |
| Resolution | 0.05 ppm |
| Linearity | Linear up to 20 ppm |
| Bias Voltage | +300 mV |
Environmental:
| Temperature Range | -20℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time:
| Long Time Output Drift | < 2% signal/month |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 2 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 12 months |
