Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0 - 100 Ppm HCN |
|---|---|---|---|
| Sensitivity*: | 0.10 ± 0.02 μA/ppm | Response Time (T90)*: | <200 Seconds At 20°C |
| Resolution: | 0.5 Ppm | Recommended Load Resistor: | 10 Ω |
| Highlight: | 7HCN Gas Sensor,Continuous Exposures Gas Sensor,Shortened Operating Life Gas Sensor |
||

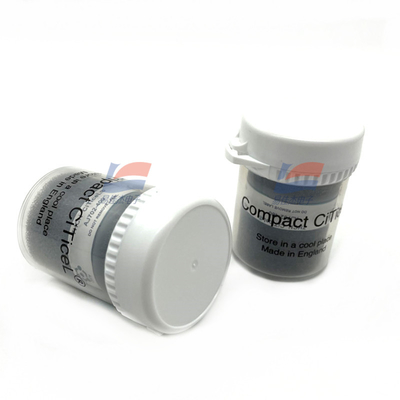

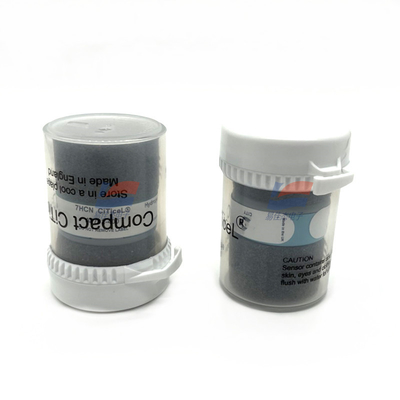

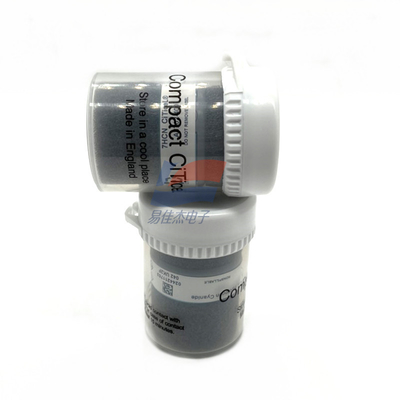

7HCN Hydrogen Cyanide (HCN) Gas Sensor Part Number: AJ702-400 Repeated Or Continuous Exposures Will Result In Significant Output Drift And Shortened Operating Life
IMPORTANT NOTE:
Connection should be made via PCB sockets
only. Soldering to the pins will seriously damage
your sensor and invalidate the warranty.
Poisoning:
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is important
that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into instruments
and operation.
When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is
fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
Cross Sensitivity Table:
Whilst CiTiceLs are designed to be highly specific to the gas they are intended to measure, they will still respond
to some degree to various other gases. The table below is not exclusive and other gases not included in the table
may still cause a sensor to react.
| Weight | 17 g |
| Operating Temperature Range | -20°C to +50°C |
| Recommended Storage Temp | 0°C to 20°C |
| Operating Pressure Range | Atmospheric ± 10% |
| Operating Humidity Range | 15 - 90% RH non-condensing |
| Expected Operating Life | Two years in air |
| Storage Life | 6 months in CTL container |
| Bias Voltage | Not Required |
