Product Details:
|
| Nominal Range: | 0 ~ 20 Ppm | Maximum Overload: | 100 Ppm |
|---|---|---|---|
| Sensitivity (20°C): | -0.8 ± 0.2 μA/ppm | Response Time (T90): | ≤ 30 S |
| Zero Signal (20°C): | < ±0.4 μA | Baseline Shift (-40°C ~ 50°C): | < 0.5 Ppm |
| Highlight: | 7NO2-20 Nitrogen Dioxide Electrochemical Sensor,Standard Series Nitrogen Dioxide Electrochemical Sensor,Measuring Nitrogen Dioxide Electrochemical Sensor |
||

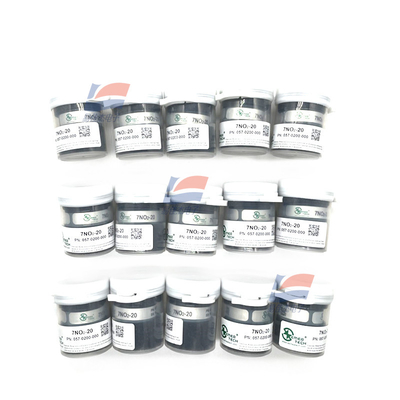

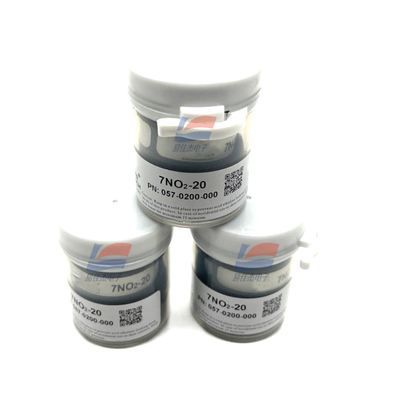

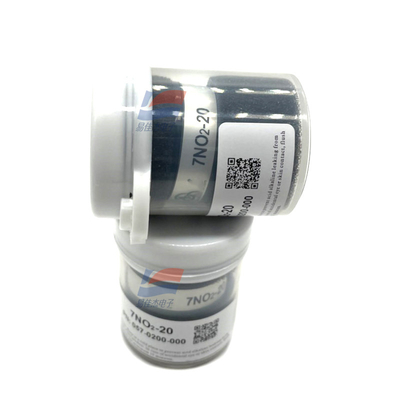

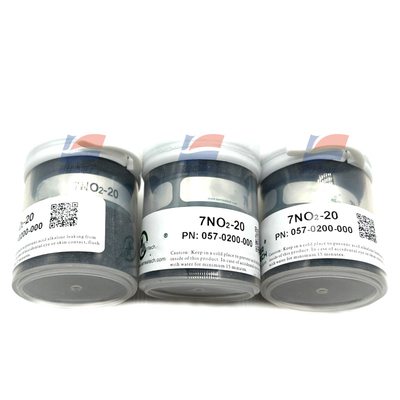

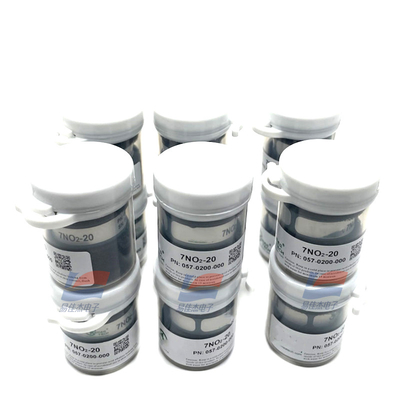

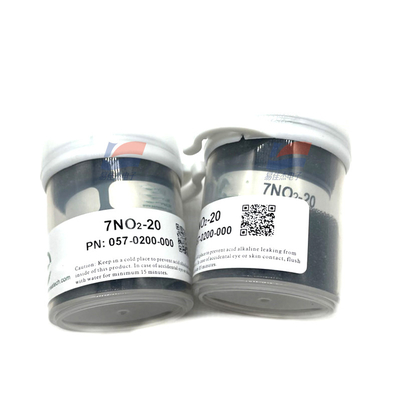

7NO2-20 (PN: 057-0200-000) ELECTROCHEMICAL NO2-20 SENSOR For Measuring The Concentration Of Nitrogen Dioxide Gas Standard Series 7 Nitrogen Dioxide Electrochemical Sensor Can Be Replaced Through Pin
Description:
This sensor is designed for the measurement of Nitrogen Dioxide concen tration in gas phase. It can be used as a pin-to-pin replacement for the standard 7-series electrochemical Nitrogen Dioxide sensors made by other manufacturers.
Installation:
Output signals from the sensor pins are di ferent. Inappropriate use of the pins in product design wil a fect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.
Environmental:
| Temperature Range | -40℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time:
| Long Time Output Drift | < 2% signal/month |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 2 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 12 months |
Intrinsic Safety Data:
| Max. Current at 100ppm NO2 | < 0.2 mA |
| Max. O/C Voltage | 1.3 V |
| Max. S/C Current |
< 1.0 A |
Physical Characteristics:
| Housing Material | ABS |
| Weight (Nominal) | 8 g |
