Product Details:
|
| Sensitivity: | 420 To 650 | Response Time: | < 25 |
|---|---|---|---|
| Zero Current: | +30 To -130 | Noise*: | 4 |
| Range: | 1000PPM | Linearity: | 20 To 35 |
| Highlight: | Gas Analyzers Carbon Monoxide Sensor,High Humidity Carbon Monoxide Sensor |
||

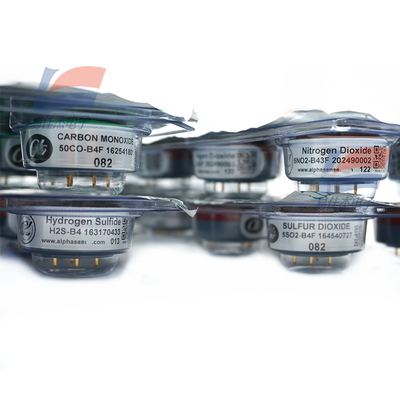

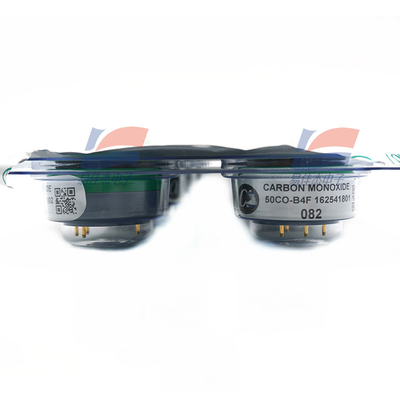

50CO-B4F Carbon Monoxide Sensor 4-Electrode (High Humidity) For Gas Analyzers
NOTE:
All sensors are tested with 47 ohm load resistor. This sensor has been designed for environments where the relative humidity is high; the sensor
may not function correctly in dry environments. As applications of use are outside our control, the information provided is given without legal responsibility.
Customers should test under their own conditions, to ensure that the sensors are suitable for their own requirements.
| Zero drift | < ±100 ppb equivalent change/year in lab air |
| Sensitivity drift | < 10 % change/year in lab air, monthly test |
| Operating life | > 36 months until 50% original signal (24 month warranted) |
| Temperature range | -30 to 50 °C |
| Pressure range | 80 to 120 kPa |
| Humidity range | 30 to 95 % rh |
| Storage period | 6 months @ 3 to 20°C (stored in sealed pot) |
| Load resistor | 33 to 100 (ISB circuit is recommended) |
