Product Details:
|
| Typical Baseline Range (pure Air): | < 0.6%vol O2 | T90 Response Time: | < 10 Seconds |
|---|---|---|---|
| Range: | 0-25% | Overload: | 30% |
| Highlight: | 4 Series Electrochemical Oxygen Sensors |
||
Product Description:

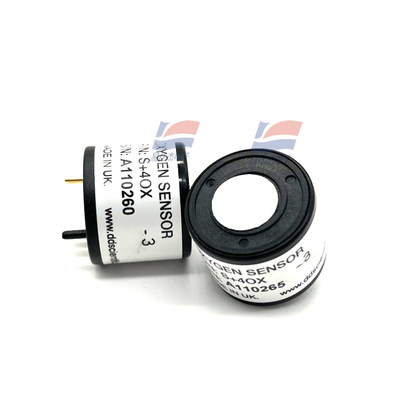

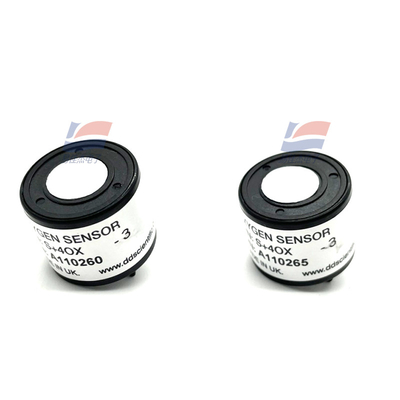

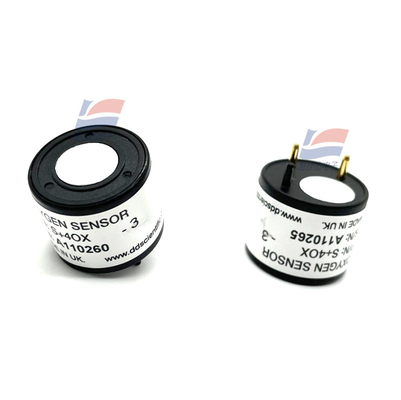

S+4OX-3 3-year Life 4 Series Electrochemical Oxygen Sensors For Portable Oxygen Detectors
Features:
High quality industrial oxygen sensor, suitable for portable, stationary oxygen detector; Robust design, high reliability, high performance, three years of life.
Details:
Technical parameters:
Output signal: 0.07± 0.02mA
Typical baseline range (pure air) : < 0.6%vol O2
T90 Response time: < 10 seconds
Range: 0-25%
Overload: 30%
Operating temperature range: -30°C - +50 °C
Pressure range: 800-1200mbar
Humidity range: 15%-95%RH
Life span:
Expected working life: > 36 months
Warranty period: 12 months
Specifications:
| Output signal | 0.07± 0.02mA |
| Typical baseline range (pure air) | < 0.6%vol O2 |
| T90 Response time | < 10sec |
| Range | 0-25% |
