Product Details:
|
| Output Signa: | 9-13mV | Zero Current (bias): | < 0.1% O2 |
|---|---|---|---|
| T90 Response Time: | < 5 Seconds | Range: | 0-100% |
| Highlight: | S+VOX Oxygen Sensor,Electrochemical Ventilators Oxygen Sensor,YJJ Oxygen Sensor |
||
Product Description:

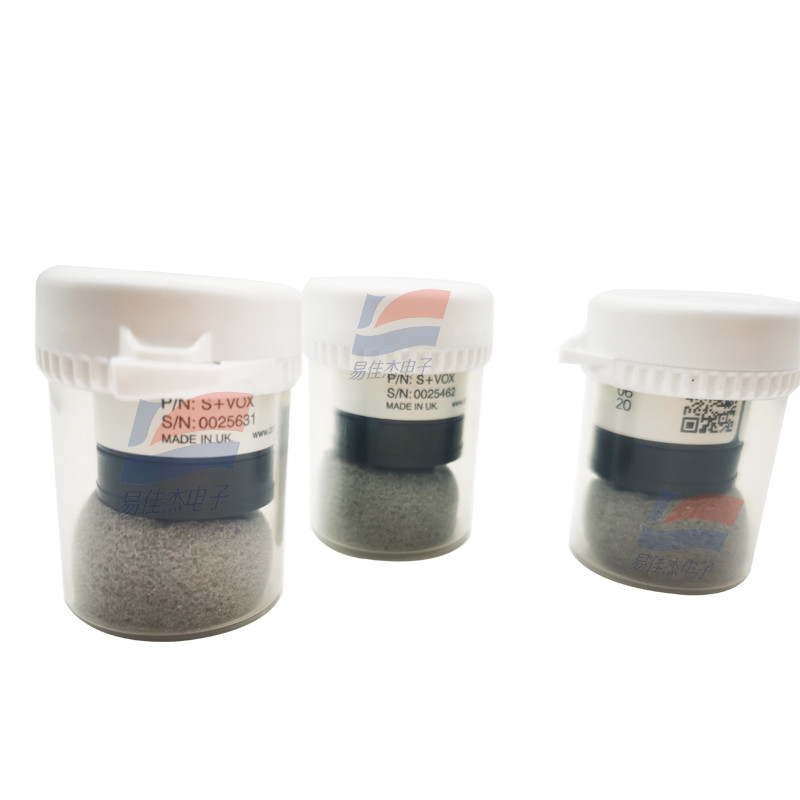

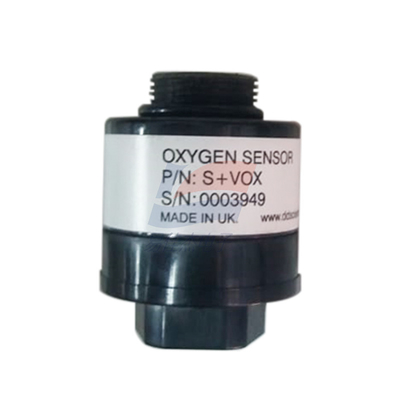

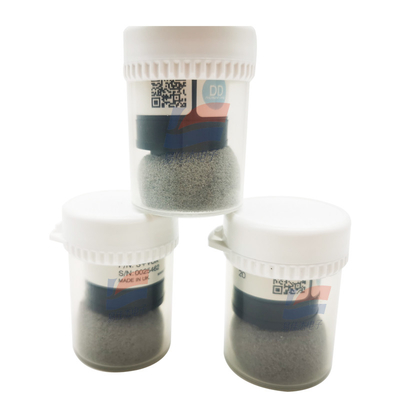

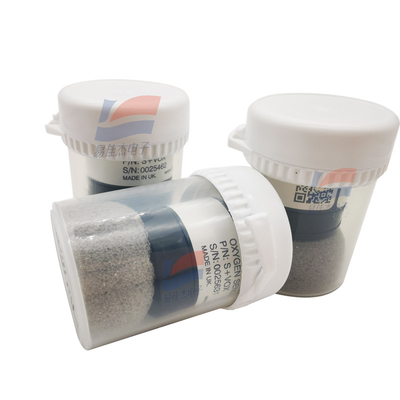

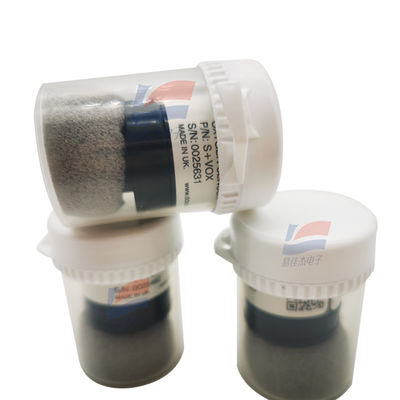

S+VOX Oxygen Sensor For Electrochemical Ventilators
Features:
S+VOX is a partial pressure oxygen sensor with 0-100% linear output, ideal for ventilator applications. Fast response time, 0-100% measurement range, on-board temperature compensation, low drift.
Details:
Technical parameters:
Output signal: 9-13mV
Zero current (bias) : < 0.1% O2
T90 Response time: < 5 seconds
Range: 0-100%
Setting:
Operating temperature range: -20°C - +50 °C
Pressure range: 500-1200mbar
Humidity range: 0-99 Non-condensing
Life span:
Expected working life: 375000% O2hrs @20°C
Warranty period: 12 months
Specifications:
| Output signal | 9-13mV |
| Typical baseline range (pure air) | < 0.6%vol O2 |
| T90 Response time | < 5 seconds |
| Range | 0-100% |
