Product Details:
|
| Typical Applications: | Critical Care Anesthesia | Operating Temperature Range: | -20°C To +50°C |
|---|---|---|---|
| Operating Pressure Range: | 0.5 Bar To 2.0 Bar | Operating Humidity Range: | 0% To 99% RH Non-condensing |
| Highlight: | Medical Oxygen Battery Oxygen Sensor,Threaded Connector Oxygen Sensor |
||
Product Description:

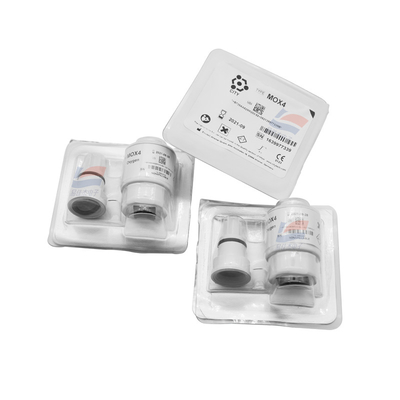

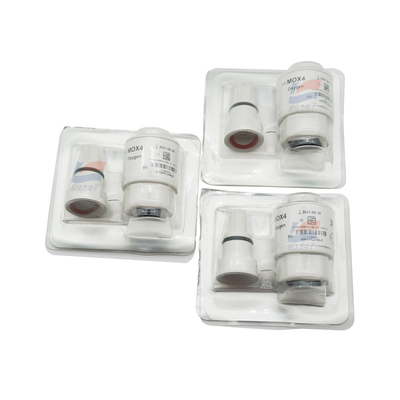

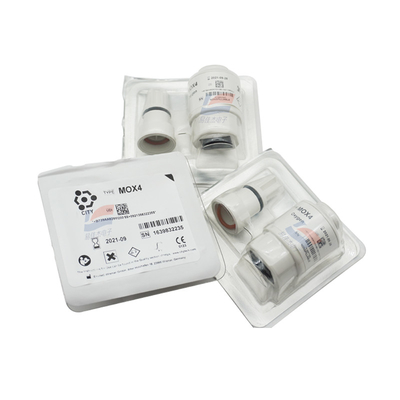

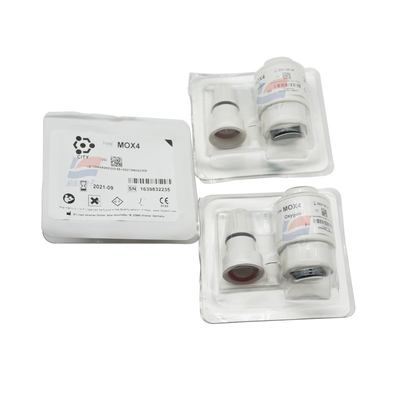

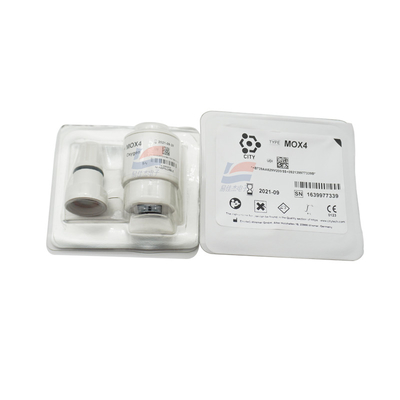

MOX4 MOX-4 AA829-M20 Oxygen Sensor With Threaded Connector For Medical Oxygen Battery
Features:
The purpose of this document is to present the performance specification of the MOX4 oxygen gas sensor.
This document should be used in conjunction with the Operating Principles (OP04) and the Product Safety Datasheet (PSDS 4).
The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date of sensor manufacture.
Output signal can drift below the lower limit over time. For guidance on the safe use of the sensor, please refer to the Operating Principles (OP04).
Important Note: Connection should be made via recommended mating parts only. Soldering to the sensor will damage it and invalidate the warranty.
For further information on the external load resistance and connection to the recommended mating part, please see Operating Principle OP-04 or contact City Technology.
All performance data is based on measurements made with cylinder gases using a flow rate of 100 mls/min. Conditions at 20°C, 50% RH and 1013 mBar. For sensor performance data under other conditions, contact City Technology.
Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
Specifications:
| Measurement range | 0 mBar to 1500 mBar O2 |
| Response Time (T90) | <15 s (air to 100% O2) |
| Baseline Offset | <200 μV |
| Linearity | Linear 0% to 100% O2 |
