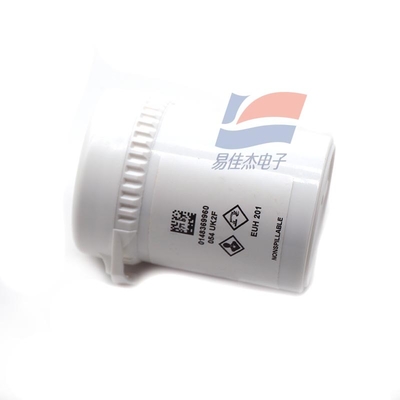

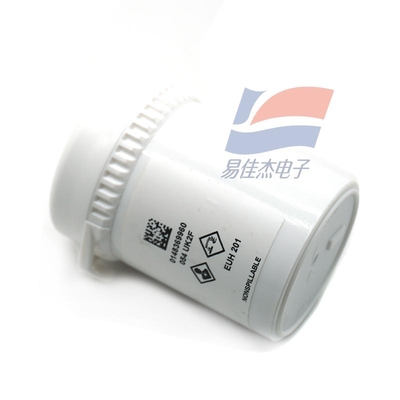

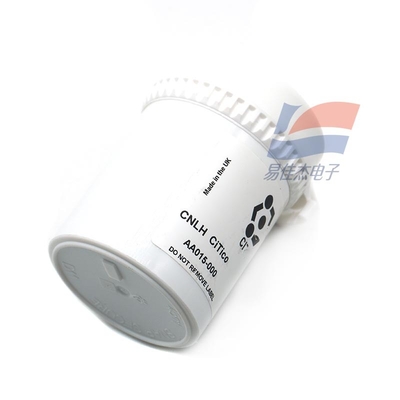

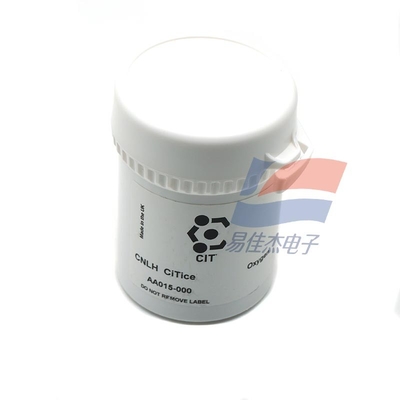

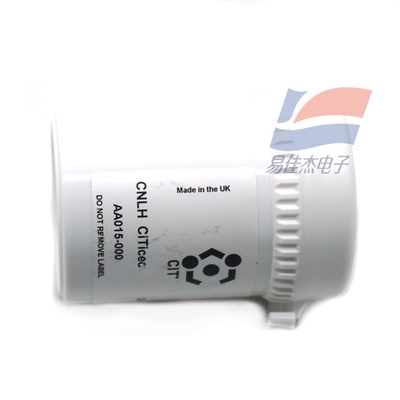

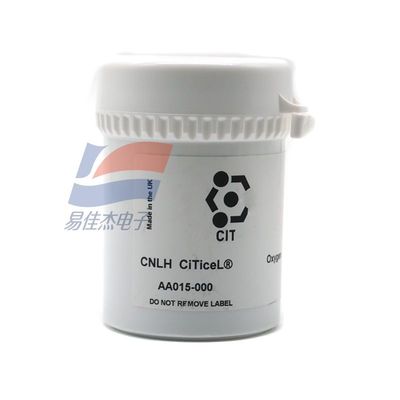

CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000 For Oxygen Analyzers 2-Electrode Electrochemical

CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical
CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical
CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000  For Oxygen Analyzers 2-Electrode Electrochemical

Large Image :  CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000 For Oxygen Analyzers 2-Electrode Electrochemical

Product Details:
Model Number: AA015-000 CNLH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000 For Oxygen Analyzers 2-Electrode Electrochemical

Description
Measurement Range: 0-2 Ppm O2 Maximum Overload: Maximum Overload
Response Time (T95)*: < 20 Seconds Purge Time:: < 6 Hours
Recommended Load Resistor: 10 Ω Weight: Weight
Highlight:

2-Electrode Oxygen Gas Sensor

,

AA015-000 Oxygen Gas Sensor

,

Electrochemical Oxygen Gas Sensor

CNLH Oxygen (O2) Gas Sensor Part Numbers: AA015-000 For Oxygen Analyzers 2-Electrode Electrochemical



Document Purpose:

The purpose of this document is to present the performance specification of the CNLH oxygen gas sensor.
This document should be used in conjunction with the Operating Principles (OP02) and the Product Safety Datasheet
(PSDS 4).
The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date of sensor
manufacture.
Output signal can drift below the lower limit over time. For guidance on the safe use of the sensor, please refer to
the Operating Principles (OP02).



* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended
circuitry. Performance characteristics outline the performance of sensors supplied within the
first 3 months. Output signal can drift below the lower limit over time.



Operating Temperature Range -20°C to +50°C
Temperature Coefficient 0.2% signal/°C
Recommended Storage Temp 0°C to 20°C
Operating Pressure Range Atmospheric ± 10%
Operating Humidity Range 0 - 99% RH non-condensing
Long Term Output Drift <5% signal loss/year
Expected Operating Life See below
Storage Life 6 months in CTL container
