Product Details:
|
| Output: | 10 To 16 MV | Zero Voltage: | Less Than 0.5mv |
|---|---|---|---|
| Resolution: | ± 0.1% | Temperature Range: | 5℃ To 45℃ |
| Highlight: | R125P02-003 Oxygen Battery Oxygen Sensor,CEMS Oxygen Battery Oxygen Sensor |
||
Product Description:

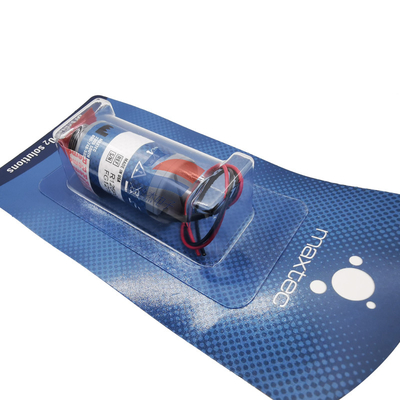

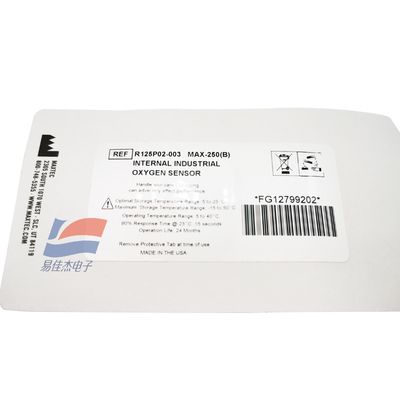

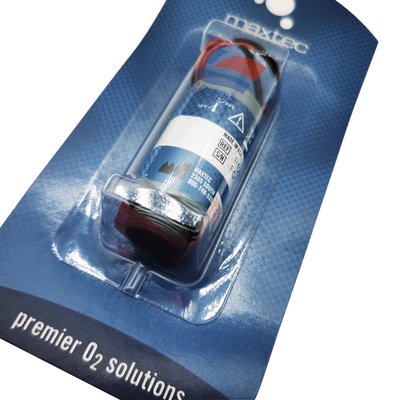

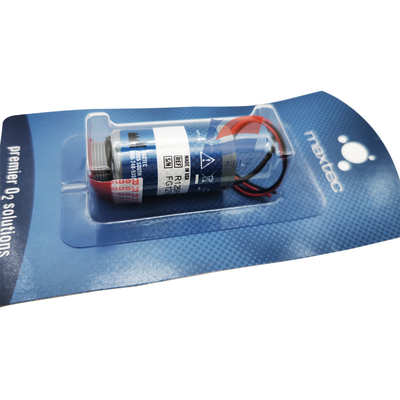

MAX250B MAX-250B MAX250B+ R125P02-003 CEMS Industrial Gas Analyzer Oxygen Battery Oxygen Sensor Accessories
Features:
Measuring range: 0-100%
Operating life: 900 000% hours, about 5 years in the atmosphere
Output: 10 to 16 mV
Zero voltage: less than 0.5mv
Resolution: ± 0.1%
Temperature range: 5℃ to 45℃
Pressure range: 0.5 to 1.5 ATM
Response time <15S (for 90%), <25S (for 97%)
Filter gas: completely filter CO, CO2, H2, H2S, SO2, NO and other gas interference
Recommended load: >1 Mω
Accuracy: ±1% (normal temperature and pressure), ±2% (full range temperature range)
Storage temperature: 15℃ to 50℃
Sampling port: M16X1 thread
Storage life: 6 months (in container)
Shelf life: 18 months from the date of delivery
Features:
Using electrochemical technology, the signal is stable
Safe, non-corrosive electrolyte
Specifications:
| Measurement range | 0-100% |
| Operating Voltage | 900 000% hours, about 5 years in the atmosphere |
| Detector Operating Current | 78±6mA |
| Warranty | 18 months |
