Product Details:
|
| Resolution: | 1 Ppm | Response Time (T90): | 120 Seconds |
|---|---|---|---|
| Long-term Stability: | <2% Signal | Operating Temperature: | -20℃ To 50℃ |
| Highlight: | YJJ 4ETO-100 Electrochemical Gas Sensor,C2H4O Electrochemical Gas Sensor,CLE-1222-400 Electrochemical Gas Sensor |
||
Product Description:

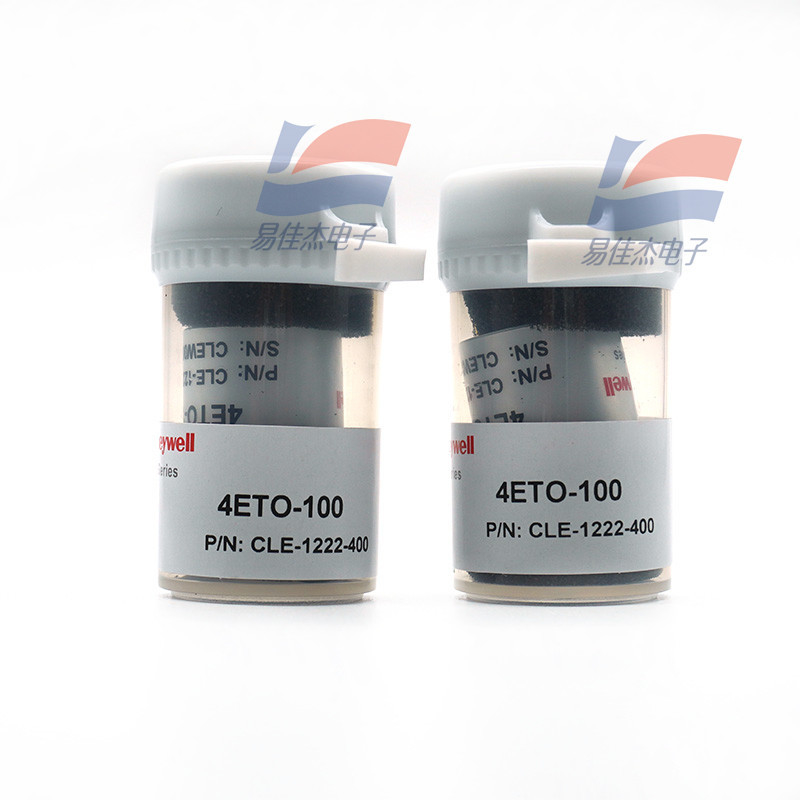

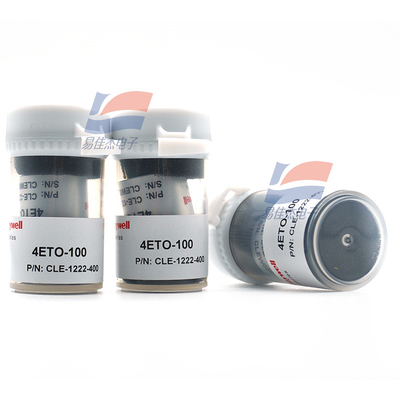

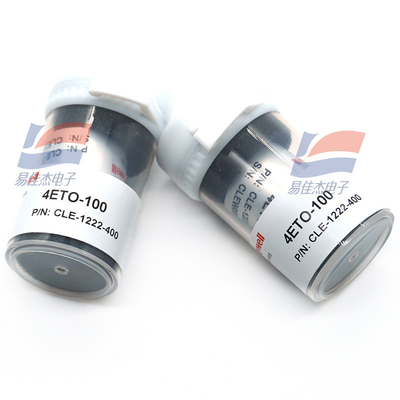

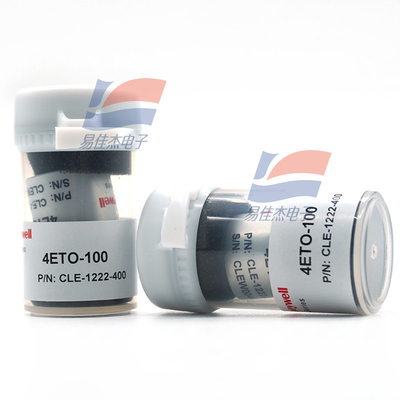

4ETO-100 Ethylene Oxide C2H4O Electrochemical Gas Sensor CLE-1222-400
Features:
Ethylene oxide sensor 0-100 ppm
Performance characterization
Product model CLE-1222-400
Range 0 to 100 ppm
Sensitivity 0.25± 0.125 mA/ppm
Baseline (20 ° C) -0.2 to 2.5 mA
Baseline drift is equivalent to 0 to 10 ppm
(-20 to 40℃)
Resolution 1 ppm
Response time (T90) 120 seconds
linearity
Long-term stability <2% signal value/month
Working condition
Operating temperature -20℃ to 50℃
Operating humidity 15 to 90%RH (non-condensing)
Working pressure 90 to 110 kPa
Bias + 300 mVStorage time 6 months (in special box)
Storage temperature 0℃ to 20℃
Service life 2 years in the air
Warranty period 12 months after delivery
Specifications:
| Product model | CLE-1222-400 |
| Range | 0 to 100 ppm |
| Sensitivity | 0.25± 0.125 mA/ppm |
| Baseline | (20 ° C) -0.2 to 2.5 mA |
